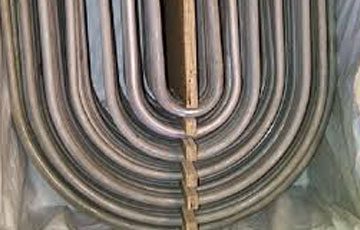

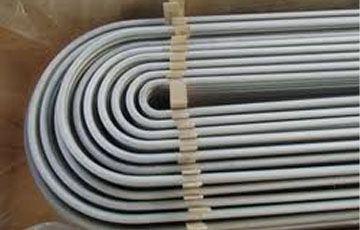

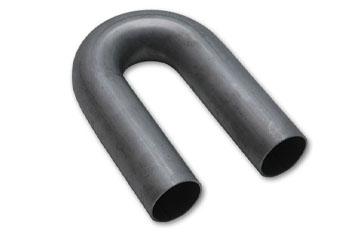

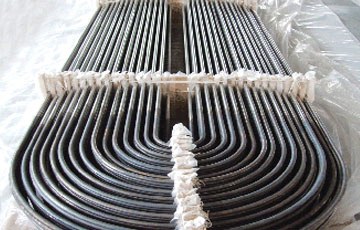

Stainless Steel U Tube
STAINLESS STEEL 304 U TUBE, STAINLESS STEEL SEAMLESS U TUBE, STAINLESS STEEL WELDED U TUBE MANUFACTURER IN INDIA
STAINLESS STEEL U TUBE HEAT EXCHANGER, STAINLESS STEEL 316 U TUBING, STAINLESS STEEL 316L U TUBE DEALER, STAINLESS STEEL U SHAPED TUBE, STAINLESS STEEL TUBE U BEND, U BEND SEAMLESS STAINLESS STEEL TUBING
Stainless Steel U Tube Supplier. We supply these u shaped steel tubing in different shapes, sizes, and designs as per client's specifications at a reasonable price. Our U seamless 304 stainless steel tubing is manufactured to specification to ensure that your end-use product requirements have been met. We are supplier, stockist, and distributor of stainless steel 304 u tube and 304l stainless steel u tube. Kamal Steel Industries has earned the status of preferred u shaped steel tubing manufacturer in India. Kamal Steel has a well-known dealer, exporter and trader of U Tube in a number of standard sizes and grades, including 316/316L and 304/304L.
Stainless Steel U Tube SPECIFICATION
Siddhgiri Exports offering Stainless Steel U Tube in customized designs. SS 304 Square Pipes are used for pressure operations such as moving liquids and gases in processing operations in the water treatment, chemical, petrochemical, food processing, dairy and marine industries. Welded tube is used as handrails, legs for office, kitchen, and hospital equipment and as architectural supports. Siddhgiri Exports is specialized as providing Stainless Steel U Tube in Polished Grit 120 - 600 finish. SS Square pipe dimensions are nominated by outside diameter indicated by the NPS (imperial) or DN (metric) designator and sometimes referred to as the 'nominal bore' - and wall thickness is determined by the schedule number.
Specification
| Size | 6.35 Mm OD to 273 Mm OD |
| Outside Diameter | 9.52 mm O.D to 50.80 mm O.D |
| Thickness | 0.7 mm to 3.68 mm |
| Length | As per Customer requirement, Maximum upto 22 Meter Long. |
| Standards | ASTM A213, ASME SA213 |
| Type | Seamless Tubes, Welded Tubes |
| Grades | TP 304 Tube, TP 304L Tube, TP 316 Tube, TP 316L Tube, TP 321 Tube, TP 321H Tube, TP 347 Tube, TP 347H Tube, TP 202 Tube, JT 7 Tube, J4 1 Tube, TP 409 Tube, TP 409L Tube, TP 410 Tube, TP 430Ti Tube, TP 439 Tube |
| Finishing | It can be supplied in mechanical polished with various grits like at 80, 120, 240, 320, 400, 600 grits and mirror polished. |
Stainless Steel U Tube Ploishing Machine, SS Square Pipes, SS Square Pipe Dealer in India, High Quality Stainless Steel U Tube, Stainless Steel U Tubes Exporter in India, Stainless Steel U Tubes for Architectural Applications, SS Square Pipe for Petrochemical Plants, Stainless Steel Square Hollow Sections, Seamless Stainless Steel U Tubes. SUPPLIERS OF Stainless Steel U TubeS, Stainless Steel U Tube EXPORTER, SS 304 SQUARE PIPE WEIGHT CHART, 304 SQUARE STEEL PIPES, SS 316 SQUARE PIPE SUPPLIER IN MUMBAI, INDIA.
Stainless Steel U Tube SIZES
SS Square pipes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a Stainless Steel U Tube is manufactured in sizes from 1/8” to 24” according to current standards ASTM, API and ASME. If required for special projects we can also supply SS Square seamless pipes & SS Square welded pipes for bigger sizes starting from outside diameter 26” up to 48”. More Information of Stainless Steel Pipe Sizes and Stainless Steel U Tube weight chart
- • Machinery
- • Automative
- • Transport
- • construction
- • Home and commercial fixtures
Stainless Steel U Tube DIMENSIONS AND WEIGHTS
Stainless Steel U Tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a Stainless Steel U Tube is manufactured according to current standards API, ASTM, and ASME. If required for special projects we can also supply large diameter U Tubes.
| Wall thickness in mm. | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.6 | 2 | 2.6 | 3 | 3.2 | 3.6 |
| O.D. in mm. | Weight in kg/meter | |||||||||||
| 6 | 0.069 | 0.081 | 0.093 | 0.104 | 0.125 | 0.144 | 0.176 | – | – | – | – | – |
| 9.52 | 0.112 | 0.134 | 0.154 | 0.174 | 0.213 | 0.249 | 0.317 | – | – | – | – | – |
| 10 | 0.119 | 0.141 | 0.163 | 0.184 | 0.225 | 0.264 | 0.336 | – | – | – | – | – |
| 12.7 | 0.153 | 0.182 | 0.21 | 0.238 | 0.293 | 0.345 | 0.444 | – | – | – | – | – |
| 14 | 0.169 | 0.201 | 0.233 | 0.264 | 0.325 | 0.384 | 0.496 | – | – | – | – | – |
| 15.87 | 0.192 | 0.229 | 0.266 | 0.301 | 0.372 | 0.44 | 0.571 | 0.694 | – | – | – | – |
| 19 | 0.231 | 0.276 | 0.32 | 0.364 | 0.45 | 0.534 | 0.696 | 0.85 | 1.066 | 1.2 | 1.264 | – |
| 25 | 0.306 | 0.366 | 0.425 | 0.484 | 0.6 | 0.714 | 0.936 | 1.15 | 1.456 | 1.65 | 1.744 | 1.926 |
| 25.4 | 0.311 | 0.372 | 0.432 | 0.492 | 0.61 | 0.726 | 0.952 | 1.17 | 1.482 | 1.68 | 1.776 | 1.962 |
| 31.8 | – | – | – | – | – | 0.918 | 1.208 | 1.49 | 1.898 | 2.16 | 2.288 | 2.538 |
| 38 | – | – | – | – | – | 1.104 | 1.456 | 1.8 | 2.301 | 2.625 | 2.784 | 3.096 |
| 44.5 | – | – | – | – | – | 1.299 | 1.716 | 2.125 | 2.724 | 3.113 | 3.304 | 3.681 |
| 50.8 | – | – | – | – | – | 1.488 | 1.968 | 2.44 | 3.133 | 3.585 | 3.808 | 4.248 |
| 63.5 | – | – | – | – | – | – | 2.476 | 3.075 | 3.959 | 4.538 | 4.824 | 5.391 |
| 76.1 | – | – | – | – | – | – | 2.98 | 3.705 | 4.778 | 5.483 | 5.832 | 6.525 |
| 101.6 | – | – | – | – | – | – | 4 | 4.98 | 6 | 7 | 7,872 | 8.82 |
Stainless Steel Square Hollow Section / Size / Dimensions / Weight Chart
| Size (mm) | Thickness (mm) | Kg / Metre |
|---|---|---|
| 20 X 20 Size (mm) | 2 Thickness (mm) | 1.11 Kg / Metre |
| 25 X 25 Size (mm) | 2 Thickness (mm) | 1.43 Kg / Metre |
| 25 X 25 Size (mm) | 2.5 Thickness (mm) | 1.74 Kg / Metre |
| 25 X 25 Size (mm) | 3 Thickness (mm) | 2.04 Kg / Metre |
| 30 X 30 Size (mm) | 2 Thickness (mm) | 1.74 Kg / Metre |
| 30 X 30 Size (mm) | 2.5 Thickness (mm) | 2.14 Kg / Metre |
| 30 X 30 Size (mm) | 3 Thickness (mm) | 2.51 Kg / Metre |
| 30 X 30 Size (mm) | 3.2 Thickness (mm) | 2.65 Kg / Metre |
| 40 X 40 Size (mm) | 2 Thickness (mm) | 2.37 Kg / Metre |
| 40 X 40 Size (mm) | 2.5 Thickness (mm) | 2.92 Kg / Metre |
| 40 X 40 Size (mm) | 3 Thickness (mm) | 3.45 Kg / Metre |
| 40 X 40 Size (mm) | 4 Thickness (mm) | 4.46 Kg / Metre |
| 40 X 40 Size (mm) | 5 Thickness (mm) | 5.40 Kg / Metre |
| 50 X 50 Size (mm) | 2 Thickness (mm) | 3.00 Kg / Metre |
| 50 X 50 Size (mm) | 2.5 Thickness (mm) | 3.71 Kg / Metre |
| 50 X 50 Size (mm) | 3 Thickness (mm) | 4.39 Kg / Metre |
| 50 X 50 Size (mm) | 4 Thickness (mm) | 5.72 Kg / Metre |
| 50 X 50 Size (mm) | 5 Thickness (mm) | 6.97 Kg / Metre |
| 50 X 50 Size (mm) | 6 Thickness (mm) | 8.20 Kg / Metre |
| 50 X 50 Size (mm) | 8 Thickness (mm) | 10.50 Kg / Metre |
| 60 X 60 Size (mm) | 3 Thickness (mm) | 5.34 Kg / Metre |
| 60 X 60 Size (mm) | 3.2 Thickness (mm) | 5.67 Kg / Metre |
| 60 X 60 Size (mm) | 3.6 Thickness (mm) | 6.34 Kg / Metre |
| 60 X 60 Size (mm) | 4 Thickness (mm) | 6.97 Kg / Metre |
| 60 X 60 Size (mm) | 5 Thickness (mm) | 8.54 Kg / Metre |
| 70 X 70 Size (mm) | 2.5 Thickness (mm) | 5.28 Kg / Metre |
| 70 X 70 Size (mm) | 3 Thickness (mm) | 6.28 Kg / Metre |
| 70 X 70 Size (mm) | 3.5 Thickness (mm) | 7.25 Kg / Metre |
| 70 X 70 Size (mm) | 3.6 Thickness (mm) | 7.46 Kg / Metre |
| 70 X 70 Size (mm) | 4 Thickness (mm) | 8.23 Kg / Metre |
| 70 X 70 Size (mm) | 5 Thickness (mm) | 10.10 Kg / Metre |
| 70 X 70 Size (mm) | 8 Thickness (mm) | 15.29 Kg / Metre |
| 70 X 70 Size (mm) | 10 Thickness (mm) | 19.13 Kg / Metre |
| 80 X 80 Size (mm) | 3 Thickness (mm) | 7.22 Kg / Metre |
| 80 X 80 Size (mm) | 3.5 Thickness (mm) | 8.35 Kg / Metre |
| 80 X 80 Size (mm) | 3.6 Thickness (mm) | 8.59 Kg / Metre |
| 80 X 80 Size (mm) | 4 Thickness (mm) | 9.48 Kg / Metre |
| 80 X 80 Size (mm) | 5 Thickness (mm) | 11.70 Kg / Metre |
| 80 X 80 Size (mm) | 6 Thickness (mm) | 13.80 Kg / Metre |
| 80 X 80 Size (mm) | 6.3 Thickness (mm) | 14.40 Kg / Metre |
| 80 X 80 Size (mm) | 8 Thickness (mm) | 17.83 Kg / Metre |
| 80 X 80 Size (mm) | 10 Thickness (mm) | 21.88 Kg / Metre |
| 90 X 90 Size (mm) | 3 Thickness (mm) | 8.16 Kg / Metre |
| 90 X 90 Size (mm) | 3.5 Thickness (mm) | 9.45 Kg / Metre |
| 90 X 90 Size (mm) | 3.6 Thickness (mm) | 9.72 Kg / Metre |
| 90 X 90 Size (mm) | 4 Thickness (mm) | 10.70 Kg / Metre |
| 90 X 90 Size (mm) | 5 Thickness (mm) | 13.30 Kg / Metre |
| 90 X 90 Size (mm) | 6 Thickness (mm) | 15.70 Kg / Metre |
| 90 X 90 Size (mm) | 6.3 Thickness (mm) | 16.40 Kg / Metre |
| 90 X 90 Size (mm) | 8 Thickness (mm) | 20.32 Kg / Metre |
| 90 X 90 Size (mm) | 10 Thickness (mm) | 25.53 Kg / Metre |
| 100 X 100 Size (mm) | 3 Thickness (mm) | 9.10 Kg / Metre |
| 100 X 100 Size (mm) | 4 Thickness (mm) | 12.00 Kg / Metre |
| 100 X 100 Size (mm) | 5 Thickness (mm) | 14.80 Kg / Metre |
| 100 X 100 Size (mm) | 6 Thickness (mm) | 17.60 Kg / Metre |
| 100 X 100 Size (mm) | 6.3 Thickness (mm) | 18.40 Kg / Metre |
| 100 X 100 Size (mm) | 8 Thickness (mm) | 22.90 Kg / Metre |
| 100 X 100 Size (mm) | 10 Thickness (mm) | 27.86 Kg / Metre |
| 100 X 100 Size (mm) | 12 Thickness (mm) | 33.44 Kg / Metre |
| 120 X 120 Size (mm) | 4 Thickness (mm) | 14.50 Kg / Metre |
| 120 X 120 Size (mm) | 5 Thickness (mm) | 18.00 Kg / Metre |
| 120 X 120 Size (mm) | 6 Thickness (mm) | 21.30 Kg / Metre |
| 120 X 120 Size (mm) | 6.3 Thickness (mm) | 22.30 Kg / Metre |
| 120 X 120 Size (mm) | 8 Thickness (mm) | 27.90 Kg / Metre |
| 120 X 120 Size (mm) | 10 Thickness (mm) | 34.13 Kg / Metre |
| 120 X 120 Size (mm) | 12 Thickness (mm) | 39.94 Kg / Metre |
| 120 X 120 Size (mm) | 16 Thickness (mm) | 54.64 Kg / Metre |
| 140 X 140 Size (mm) | 6 Thickness (mm) | 25.97 Kg / Metre |
| 140 X 140 Size (mm) | 8 Thickness (mm) | 32.89 Kg / Metre |
| 140 X 140 Size (mm) | 10 Thickness (mm) | 41.15 Kg / Metre |
| 150 X 150 Size (mm) | 4 Thickness (mm) | 18.30 Kg / Metre |
| 150 X 150 Size (mm) | 5 Thickness (mm) | 22.70 Kg / Metre |
| 150 X 150 Size (mm) | 6 Thickness (mm) | 27.00 Kg / Metre |
| 150 X 150 Size (mm) | 6.3 Thickness (mm) | 28.30 Kg / Metre |
| 150 X 150 Size (mm) | 8 Thickness (mm) | 35.40 Kg / Metre |
| 150 X 150 Size (mm) | 10 Thickness (mm) | 43.47 Kg / Metre |
| 150 X 150 Size (mm) | 12 Thickness (mm) | 53.48 Kg / Metre |
| 150 X 150 Size (mm) | 16 Thickness (mm) | 65.05 Kg / Metre |
| 160 X 160 Size (mm) | 6 Thickness (mm) | 27.39 Kg / Metre |
| 160 X 160 Size (mm) | 8 Thickness (mm) | 36.90 Kg / Metre |
| 160 X 160 Size (mm) | 10 Thickness (mm) | 46.88 Kg / Metre |
| 180 X 180 Size (mm) | 5 Thickness (mm) | 27.97 Kg / Metre |
| 180 X 180 Size (mm) | 6 Thickness (mm) | 33.26 Kg / Metre |
| 180 X 180 Size (mm) | 8 Thickness (mm) | 43.00 Kg / Metre |
| 180 X 180 Size (mm) | 10 Thickness (mm) | 53.00 Kg / Metre |
| 180 X 180 Size (mm) | 12 Thickness (mm) | 61.01 Kg / Metre |
| 180 X 180 Size (mm) | 12.5 Thickness (mm) | 65.20 Kg / Metre |
| 180 X 180 Size (mm) | 16 Thickness (mm) | 81.30 Kg / Metre |
| 200 X 200 Size (mm) | 5 Thickness (mm) | 31.18 Kg / Metre |
| 200 X 200 Size (mm) | 6 Thickness (mm) | 37.09 Kg / Metre |
| 200 X 200 Size (mm) | 8 Thickness (mm) | 48.00 Kg / Metre |
| 200 X 200 Size (mm) | 10 Thickness (mm) | 59.30 Kg / Metre |
| 200 X 200 Size (mm) | 12 Thickness (mm) | 68.84 Kg / Metre |
| 200 X 200 Size (mm) | 12.5 Thickness (mm) | 73.00 Kg / Metre |
| 200 X 200 Size (mm) | 16 Thickness (mm) | 90.91 Kg / Metre |
| 250 X 250 Size (mm) | 6 Thickness (mm) | 46.83 Kg / Metre |
| 250 X 250 Size (mm) | 8 Thickness (mm) | 60.50 Kg / Metre |
| 250 X 250 Size (mm) | 10 Thickness (mm) | 75.00 Kg / Metre |
| 250 X 250 Size (mm) | 12 Thickness (mm) | 88.45 Kg / Metre |
| 250 X 250 Size (mm) | 12.5 Thickness (mm) | 92.70 Kg / Metre |
| 250 X 250 Size (mm) | 16 Thickness (mm) | 111.48 Kg / Metre |
| 300 X 300 Size (mm) | 6 Thickness (mm) | 55.30 Kg / Metre |
| 300 X 300 Size (mm) | 8 Thickness (mm) | 74.18 Kg / Metre |
| 300 X 300 Size (mm) | 10 Thickness (mm) | 90.70 Kg / Metre |
| 300 X 300 Size (mm) | 12 Thickness (mm) | 108.68 Kg / Metre |
| 300 X 300 Size (mm) | 12.5 Thickness (mm) | 112.00 Kg / Metre |
| 300 X 300 Size (mm) | 16 Thickness (mm) | 141.84 Kg / Metre |
| 350 X 350 Size (mm) | 10 Thickness (mm) | 105.93 Kg / Metre |
| 350 X 350 Size (mm) | 12 Thickness (mm) | 126.74 Kg / Metre |
| 350 X 350 Size (mm) | 16 Thickness (mm) | 166.94 Kg / Metre |
| 400 X 400 Size (mm) | 8 Thickness (mm) | 97.56 Kg / Metre |
| 400 X 400 Size (mm) | 10 Thickness (mm) | 121.95 Kg / Metre |
| 400 X 400 Size (mm) | 12 Thickness (mm) | 151.97 Kg / Metre |
| 400 X 400 Size (mm) | 16 Thickness (mm) | 191.94 Kg / Metr |
| Size | kg / m |
| 12 x 12 x 1.5 mm | 0.59 |
| 15 x 15 x 1.2 mm | 0.54 |
| 15 x 15 x 1.5 mm | 0.66 |
| 20 x 20 x 1.2 mm | 0.73 |
| 20 x 20 x 1.5 mm | 0.90 |
| 20 x 20 x 2.0 mm | 0.18 |
| 25 x 25 x 1.2 mm | 0.93 |
| 25 x 25 x 1.5 mm | 1.15 |
| 25 x 25 x 2.0 mm | 1.50 |
| 25 x 25 x 3.0 mm | 2.22 |
| 30 x 30 x 1.2 mm | 1.11 |
| 30 x 30 x 1.5 mm | 1.37 |
| 30 x 30 x 2.0 mm | 1.84 |
| 30 x 30 x 3.0 mm | 2.72 |
| 40 x 40 x 1.2 mm | 1.50 |
| 40 x 40 x 1.5 mm | 1.86 |
| 40 x 40 x 2.0 mm | 2.45 |
| 40 x 40 x 3.0 mm | 3.76 |
Stainless Steel U Tube SCHEDULE CHART
| NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
|---|---|---|---|---|---|
|
1/8″
|
|
|
|
|
|
|
1/4″
|
|
|
|
|
|
|
3/8″
|
|
|
|
|
|
|
1/2″
|
|
|
|
|
|
|
3/4″
|
|
|
|
|
|
|
1″
|
|
|
|
|
|
|
1 1/4″
|
|
|
|
|
|
|
1 1/2″
|
|
|
|
|
|
|
2″
|
|
|
|
|
|
|
2 1/2″
|
|
|
|
|
|
|
3″
|
|
|
|
|
|
|
4″
|
|
|
|
|
|
|
5″
|
|
|
|
|
|
|
6″
|
|
|
|
|
SS SQUARE PIPE NOMINAL BORE SCHEDULE SIZES
| GAUGE | THICKNESS RANGE(INCHES) | TYPICAL VALUE (INCHES) |
|---|---|---|
| 22 | 0.025 through 0.029 | 0.028 |
| 20 | 0.031 through 0.035 | 0.035 |
| 19 | 0.038 through 0.042 | 0.042 |
| 18 | 0.044 through 0.049 | 0.049 |
| 17 | 0.053 through 0.058 | 0.058 |
| 16 | 0.060 through 0.065 | 0.065 |
| 15 | 0.066 through 0.074 | 0.072 |
| 14 | 0.075 through 0.085 | 0.083 |
| 13 | 0.087 through 0.097 | 0.095 |
| 12 | 0.101 through 0.111 | 0.109 |
| 11 | 0.112 through 0.122 | 0.12 |
| 10 | 0.126 through 0.136 | 0.134 |
| 9 | 0.140 through 0.150 | 0.148 |
| 8 | 0.157 through 0.167 | 0.165 |
| 7 | 0.175 through 0.185 | 0.18 |
Stainless Steel U Tube PRESSURE RATING
| Pressure Rating (psig) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Pipe Size (inches) |
Pipe Schedule | Temperature (oF) | ||||||||
| 100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||
| 1" | 40 | 3048 | 2629 | 2362 | 2171 | 2019 | 1924 | 1867 | 1824 | 1810 |
| 80 | 4213 | 3634 | 3265 | 3002 | 2791 | 2659 | 2580 | 2528 | 2501 | |
| 160 | 6140 | 5296 | 4759 | 4375 | 4068 | 3876 | 3761 | 3684 | 3646 | |
| 1 1/2" | 40 | 2257 | 1947 | 1750 | 1608 | 1496 | 1425 | 1383 | 1354 | 1340 |
| 80 | 3182 | 2744 | 2466 | 2267 | 2108 | 2009 | 1949 | 1909 | 1889 | |
| 160 | 4619 | 3984 | 3580 | 3291 | 3060 | 2916 | 2829 | 2772 | 2743 | |
| 2" | 40 | 1902 | 1640 | 1474 | 1355 | 1260 | 1201 | 1165 | 1141 | 1129 |
| 80 | 2747 | 2369 | 2129 | 1957 | 1820 | 1734 | 1682 | 1648 | 1631 | |
| 160 | 4499 | 3880 | 3486 | 3205 | 2980 | 2840 | 2755 | 2699 | 2671 | |
| 3" | 40 | 1806 | 1558 | 1400 | 1287 | 1196 | 1140 | 1106 | 1084 | 1072 |
| 80 | 2553 | 2202 | 1979 | 1819 | 1691 | 1612 | 1564 | 1532 | 1516 | |
| 160 | 3840 | 3312 | 2976 | 2736 | 2544 | 2424 | 2352 | 2304 | 2280 | |
| 4" | 40 | 1531 | 1321 | 1187 | 1091 | 1014 | 967 | 938 | 919 | 909 |
| 80 | 2213 | 1909 | 1715 | 1577 | 1466 | 1397 | 1355 | 1328 | 1314 | |
| 160 | 3601 | 3106 | 2791 | 2566 | 2386 | 2273 | 2206 | 2161 | 2138 | |
| 5" | 40 | 1342 | 1158 | 1040 | 956 | 889 | 847 | 822 | 805 | 797 |
| 80 | 1981 | 1709 | 1535 | 1411 | 1312 | 1250 | 1213 | 1189 | 1176 | |
| 160 | 3414 | 2945 | 2646 | 2433 | 2262 | 2155 | 2091 | 2049 | 2027 | |
| 6" | 40 | 1219 | 1052 | 945 | 869 | 808 | 770 | 747 | 732 | 724 |
| 80 | 1913 | 1650 | 1483 | 1363 | 1267 | 1208 | 1172 | 1148 | 1136 | |
| 160 | 3289 | 2836 | 2549 | 2343 | 2179 | 2076 | 2014 | 1973 | 1953 | |
| 8" | 40 | 1073 | 926 | 832 | 765 | 711 | 678 | 657 | 644 | 637 |
| 80 | 1692 | 1459 | 1311 | 1205 | 1121 | 1068 | 1036 | 1015 | 1005 | |
| 160 | 3175 | 2738 | 2460 | 2262 | 2103 | 2004 | 1944 | 1905 | 1885 | |
| 10" | 40 | 974 | 840 | 755 | 694 | 645 | 615 | 596 | 584 | 578 |
| 80 | 1609 | 1388 | 1247 | 1147 | 1066 | 1016 | 986 | 966 | 956 | |
| 160 | 3147 | 2714 | 2439 | 2242 | 2085 | 1986 | 1927 | 1880 | 1868 | |
STAINLESS STEEL PIPE TOLERANCES
| NPS Designator | Permissible Variations in Outside Diameter | |
|---|---|---|
| Over In. | Under In. | |
| 1/8 to 1-1/2, incl | 1/64 (0.015) | 1/32 (0.031) |
| Over 1-1/2 to 4, incl | 1/32 (0.031) | 1/32 (0.031) |
| Over 4 to 8, incl | 1/16 (0.062) | 1/32 (0.031) |
| Over 8 to 18, incl | 3/23 (0.093) | 1/32 (0.031) |
Nominal Wall Thickness:
| NPS Designator | Outside Diameter in. | Schedule 10S in. | Schedule 40S in. | Schedule 80S in. | Schedule 160 in. | Schedule XX in. |
|---|---|---|---|---|---|---|
| 1/4 | 0.540 | 0.065 | 0.088 | 0.119 | ||
| 3/8 | 0.675 | 0.065 | 0.091 | 0.126 | ||
| 1/2 | 0.840 | 0.083 | 0.109 | 0.147 | .188 | .294 |
| 3/4 | 1.050 | 0.083 | 0.113 | 0.154 | .218 | .308 |
| 1.0 | 1.315 | 0.109 | 0.133 | 0.179 | .250 | .358 |
| 1 1/4 | 1.660 | 0.109 | 0.140 | 0.191 | .250 | .382 |
| 1 1/2 | 1.900 | 0.109 | 0.145 | 0.200 | .281 | .400 |
| 2 | 2.375 | 0.109 | 0.154 | 0.218 | .343 | .436 |
| 2 1/2 | 2.875 | 0.120 | 0.203 | 0.276 | .375 | .552 |
| 3 | 3.500 | 0.120 | 0.216 | 0.300 | .438 | .600 |
| 3 1/2 | 4.000 | 0.120 | 0.226 | 0.318 | .636 | |
| 4 | 4.500 | 0.120 | 0.237 | 0.337 | .534 | .674 |
| 5 | 5.563 | 0.134 | 0.258 | 0.375 | .625 | .750 |
| 6 | 6.625 | 0.134 | 0.280 | 0.432 | .719 | .864 |
| 8 | 8.625 | 0.148 | 0.322 | 0.500 | .906 | .875 |
| 10 | 10.750 | 0.165 | 0.365 | 0.500 | 1.125 | |
| 12 | 12.750 | 0.180 | 0.375 | 0.500 | 1.312 | |
| 14 | 14.000 | 0.188 | 0.375 | 0.500 | 1.406 | |
| 16 | 16.000 | 0.188 | 0.375 | 0.500 | 1.594 |
Minimum Wall Thickness on Inspection:
- tn * 0.875 = tm Where: tn = nominal wall thickness, in. [mm], and tm= minimum wall thicknesses, in. [mm]
- The wall thickness is inch-pound units is rounded to three decimal places in accordance with the rounding method of Practice E29. The wall thickness in SI units is rounded to one decimal place in accordance with the rounding method of Practice E29.
| Nominal Thickness | Minimum Thickness on Inspection | Nominal Thickness | Minimum Thickness on Inspection | Nominal Thickness | Minimum Thickness on Inspection | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in. | mm | in | mm | in | mm | in | mm | in | mm | in | mm |
| 0.068 | 1.7 | 0.060 | 1.5 | 0.294 | 7.5 | 0.257 | 6.5 | 0.750 | 19.0 | 0.658 | 16.6 |
| 0.068 | 2.2 | 0.077 | 2.0 | 0.300 | 7.6 | 0.262 | 6.7 | 0.812 | 20.6 | 0.710 | 18.0 |
| 0.091 | 2.3 | 0.080 | 2.0 | 0.307 | 7.8 | 0.269 | 6.8 | 0.843 | 21.4 | 0.736 | 18.7 |
| 0.095 | 2.4 | 0.083 | 2.1 | 0.308 | 7.8 | 0.270 | 6.9 | 0.854 | 21.7 | 0.756 | 19.2 |
| 0.113 | 2.9 | 0.099 | 2.5 | 0.312 | 7.9 | 0.273 | 6.9 | 0.875 | 22.2 | 0.766 | 19.5 |
| 0.119 | 3.0 | 0.104 | 2.6 | 0.318 | 8.1 | 0.278 | 7.1 | 0.906 | 23.0 | 0.783 | 20.1 |
| 0.125 | 3.2 | 0.109 | 2.8 | 0.322 | 8.2 | 0.282 | 7.2 | 0.937 | 23.8 | 0.820 | 20.8 |
| 0.126 | 3.2 | 0.110 | 2.8 | 0.330 | 8.4 | 0.289 | 7.3 | 0.968 | 24.6 | 0.847 | 21.5 |
| 0.133 | 3.4 | 0.116 | 2.9 | 0.337 | 8.6 | 0.295 | 7.5 | 1.000 | 25.4 | 0.875 | 22.2 |
| 0.140 | 3.6 | 0.122 | 3.1 | 0.343 | 8.7 | 0.300 | 7.6 | 1.031 | 26.2 | 0.902 | 22.9 |
| 0.145 | 3.7 | 0.127 | 3.2 | 0.344 | 8.7 | 0.301 | 7.6 | 1.062 | 27.0 | 0.929 | 23.6 |
| 0.147 | 3.7 | 0.129 | 3.3 | 0.358 | 9.1 | 0.313 | 8.0 | 1.083 | 27.8 | 0.956 | 24.3 |
| 0.154 | 3.9 | 0.135 | 3.4 | 0.365 | 9.3 | 0.319 | 8.1 | 1.125 | 28.6 | 0.984 | 25.0 |
| 0.156 | 4.0 | 0.136 | 3.5 | 0.375 | 9.5 | 0.328 | 8.3 | 1.156 | 29.4 | 1.012 | 25.7 |
| 0.179 | 4.5 | 0.157 | 4.0 | 0.382 | 9.7 | 0.334 | 8.5 | 1.218 | 30.9 | 1.066 | 27.1 |
| 0.187 | 43.7 | 0.164 | 4.2 | 0.400 | 10.2 | 0.350 | 8.9 | 1.250 | 31.8 | 1.094 | 27.8 |
| 0.188 | 4.8 | 0.164 | 4.2 | 0.406 | 10.3 | 0.355 | 9.0 | 1.281 | 32.5 | 1.121 | 28.5 |
| 0.191 | 4.9 | 0.167 | 4.2 | 0.432 | 10.4 | 0.378 | 9.6 | 1.312 | 33.3 | 1.148 | 29.2 |
| 0.200 | 5.1 | 0.175 | 4.4 | 0.436 | 11.1 | 0.382 | 9.7 | 1.343 | 34.1 | 1.175 | 29.8 |
| 0.203 | 5.2 | 0.178 | 4.5 | 0.437 | 11.1 | 0.382 | 9.7 | 1.375 | 34.9 | 1.203 | 30.6 |
| 0.216 | 5.5 | 0.189 | 4.8 | 0.438 | 11.1 | 0.383 | 9.7 | 1.406 | 35.7 | 1.230 | 31.2 |
| 0.218 | 5.5 | 0.191 | 4.9 | 0.500 | 12.7 | 0.438 | 11.1 | 1.436 | 36.5 | 1.258 | 32.0 |
| 0.219 | 5.6 | 0.192 | 4.9 | 0.531 | 13.5 | 0.465 | 11.8 | 1.500 | 36.1 | 1.312 | 33.3 |
| 0.226 | 5.7 | 0.196 | 5.0 | 0.552 | 14.0 | 0.483 | 12.3 | 1.531 | 38.9 | 1.340 | 34.0 |
| 0.237 | 6.0 | 0.207 | 5.2 | 0.562 | 14.3 | 0.492 | 12.5 | 1.562 | 39.7 | 1.367 | 34.7 |
| 0.250 | 6.4 | 0.219 | 5.6 | 0.593 | 15.1 | 0.519 | 13.2 | 1.593 | 40.5 | 1.394 | 35.4 |
| 0.258 | 6.6 | 0.226 | 5.7 | 0.600 | 15.2 | 0.525 | 13.3 | 1.750 | 44.5 | 1.531 | 38.9 |
| 0.276 | 7.0 | 0.242 | 6.1 | 0.625 | 15.9 | 0.547 | 13.9 | 1.781 | 45.2 | 1.558 | 39.6 |
| 0.277 | 7.0 | 0.242 | 6.1 | 0.656 | 16.6 | 0.573 | 14.6 | 1.812 | 46.0 | 1.586 | 49.3 |
| 0.279 | 7.1 | 0.244 | 6.2 | 0.674 | 17.1 | 0.590 | 15.0 | 1.968 | 50.0 | 1.772 | 43.7 |
| 0.280 | 7.1 | 0.245 | 6.2 | 0.687 | 17.4 | 0.601 | 15.3 | 2.062 | 52.4 | 1.804 | 45.8 |
| 0.281 | 7.1 | 0.246 | 6.2 | 0.719 | 18.3 | 0.629 | 16.0 | 2.343 | 59.5 | 2.050 | 52.1 |
Stainless Steel U Tube CHEMICAL COMPOSITION
The below table shows the chemical composition of the used for Stainless Steel Pipes:
| GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
| TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
| TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
| TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Stainless Steel U Tube MECHANICAL PROPERTIES
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
| TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
| TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
AVAILABLE STOCK OF SS SQUARE PIPE
| Stainless Steel Seamless Square Pipe Supplier & Manufacturer in India | SS Seamless Square Pipe Supplier |
| Seamless SS Square Pipe Supplier & Manufacturer in India | SS Polished Square Pipe Supplier & Manufacturer in India |
| Stainless Steel U Tube Suppliers & Manufacturer in India | Stainless Steel U Tube Exporter |
| 304 Stainless Steel U Tube Suppliers & Manufacturer in India | 316L Stainless Steel U Tube |
| SS Square Pipe Hollow Sections Supplier & Manufacturer in India | ASTM A312 TP304 SS Square Pipe Supplier & Manufacturer in India |
| SS Bright Annealed Square Pipe | ASTM A312 TP304LStainless Steel Supplier & Manufacturer in India |
| Stainless Steel 201 Square Pipes Supplier & Manufacturer in India | Stainless Steel Square 316 Pipe Supplier |
| Large Diameter Stainless Steel U Tube | ASTM A312 TP304/304L SS Square Pipe Supplier & Manufacturer in India |
| SS Square Pipe Supplier & Manufacturer in India | ASTM A312 TP316 Stainless Steel Supplier & Manufacturer in India |
| Hot Rolled Stainless Steel U Tube Suppliers & Manufacturer in India | ASTM A312 TP316L Stainless SS & Manufacturer in India |
| 1/2″ NB in Thickness Schedule Stainless Steel U Tube | ASTM A312 TP201 Stainless Steel U Tube |
| 4″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India | ASTM A312 TP316/316L Stainless Steel U Tube Suppliers |
| 5″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India | Schedule 40 SS Square Pipe Supplier & Manufacturer in India |
| 6″ NB in Thickness Schedule Stainless Steel U Tube Suppliers & Manufacturer in India | Schedule 80 Stainless Steel U Tube Suppliers & Manufacturer in India |
| 7″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India | Schedule 10 SS Square Pipe Supplier |
| 8″ NB in Thickness Schedule Stainless Steel U Tube Suppliers & Manufacturer in India | Sch 5 Stainless Steel U Tube Suppliers |
| 14″ NB in Thickness Schedule SS Square Pipe Supplier | Stainless Steel U Tube Weight per meter |
| 16″ NB in Thickness Schedule Stainless Steel U Tube Supplier & Manufacturer in India | Weight of Stainless Steel U Tube |
| 18″ NB in Thickness Schedule SS Square Pipe Supplier | Stainless Steel U Tube Price in India |
PACKAGING AND LABELING
To ensure the safe transportation of our products, we take meticulous care in packaging them. In the case of exports, we employ standard wooden cases for packaging. Each pipe is marked with essential information, including Grade, Lot No, Size, Degree, and our trademark. Furthermore, we can provide custom markings on our products upon special requests.
QUALITY ASSURANCE
Our Products maintains stringent quality control measures for all fittings and bars throughout every production stage, from the procurement of raw materials to the dispatch of the final products. Visual inspections ensure compliance with industry-standard codes and regulations such as ASTM, ASME, MSS, DIN, EN, and JIS. Should the need arise, we can arrange for official certified Inspection Agencies to witness material reports, dimensions, and product quality conformity.
TEST CERTIFICATES
Our products come with a Manufacturer Test Certificate per EN 10204 / 3.1B and a Raw Materials Certificate. In addition, they undergo a 100% Radiography Test, and Third Party Inspection Reports can also be provided.
SHIPPING POLICY
The delivery time and dates are determined based on the type and quantity of steel ordered. Our sales team will provide a delivery schedule when you request a quotation. Please note that the delivery schedule may occasionally be subject to change, so we recommend checking with our sales department when placing your orders. Orders are typically dispatched within 2-3 business days and may take 5-10 business days to reach their destination. If Forgings are out of stock, orders may require 2-4 weeks for shipping. Our Products will promptly notify the buyer if such a situation occurs.
Stainless Steel Square Rod
Stainless Steel Rods
Stainless Steel Rods
Stainless Steel U Tubes
Industry We Serve
Cities We Deliver To
Istanbul, Coimbatore, Jamshedpur, Haryana, Dammam, Ankara, Hyderabad, Sharjah, Kuala Lumpur, Mumbai, Surat, Ranchi, Pune, Bangkok, Busan, Kuwait City, Singapore, Indore, Vadodara, Madrid, Al Jubail, Dallas, Faridabad, Secunderabad, Toronto, Petaling Jaya, Brisbane, Jaipur, Thiruvananthapuram, Colombo, Atyrau, Algiers, Los Angeles, Houston, Visakhapatnam, Tehran, Thane, Doha, Hanoi, Edmonton, Karachi, Cairo, Gurgaon, Jakarta, Ahmedabad, Geoje-si, Ho Chi Minh City, Chiyoda, Kanpur, Riyadh, Rajkot, Bhopal, La Victoria, Milan, Muscat, Chennai, Bogota, Gimhae-si, New York, Ernakulam, Granada, Santiago, Ludhiana, Dubai, Kolkata, Caracas, Howrah, Jeddah, Lahore, Courbevoie, Perth, Pimpri-Chinchwad, Aberdeen, Manama, Nagpur, Ahvaz, Montreal, Seoul, Bengaluru, Sydney, Al Khobar, Lagos, Calgary, Vung Tau, New Delhi, Nashik, Ulsan, Noida, Mexico City, Hong Kong, Rio de Janeiro, Abu Dhabi, Melbourne, Chandigarh, Baroda, Port-of-Spain, London, Navi Mumbai, Moscow.
Countries We Deliver To
Peru, Kazakhstan, Bolivia, Bhutan, Poland, Nigeria, China, Bangladesh, Norway, Estonia, Costa Rica, Taiwan, Sri Lanka, Qatar, Iran, Canada, Zimbabwe, Malaysia, Morocco, Denmark, Poland, Thailand, Egypt, Iran, Gabon, Lithuania, Netherlands, Belgium, Bulgaria, Bahrain, Mexico, Japan, Turkey, Portugal, Venezuela, South Korea, Ecuador, United Arab Emirates, Namibia, Hong Kong, Ghana, Slovakia, Germany, Austria, Vietnam, Gambia, Mongolia, Ireland, Italy, Romania, United States, Kuwait, Spain, Indonesia, Greece, France, Chile, Czech Republic, Nigeria, Israel, Tunisia, Libya, Ukraine, Nepal, Jordan, Brazil, Serbia, Afghanistan, South Africa, Lebanon, Chile, Angola, Philippines, Hungary, Mexico, Yemen, United Kingdom, Sweden, Tibet, Macau, Kenya, Puerto Rico, New Zealand, Singapore, Algeria, Azerbaijan, Oman, Pakistan, India, Saudi Arabia, Russia, Iraq, Australia, Finland, Colombia, Argentina, Croatia, Belarus, Switzerland, Trinidad & Tobago.
Other Available Products of Aluminium Rods
» Stainless Steel Round Pipe
» Stainless Steel Rectangular Pipe
» Stainless Steel Hydraulic Pipe
» Stainless Steel Oval Pipe
» Stainless Steel 304 Pipe
» Stainless Steel 304L Pipe
» Stainless Steel ERW Pipe
» Stainless Steel 316 Pipe
» Stainless Steel 316L Pipe
» Stainless Steel Hollow Pipe
» Stainless Steel Perforated Pipe
People also search for Stainless Steel Products
Stainless Steel Tube price per kg, Stainless Steel U Tube manufacturers in india, Stainless Steel Rectangular Pipe, Stainless Steel Perforated Pipe.
