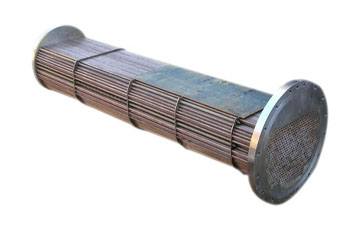

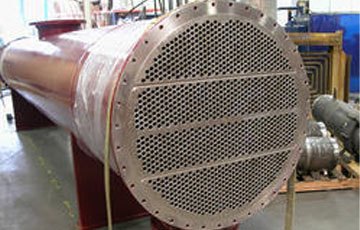

Stainless Steel Heat Excahnger Tube

STAINLESS STEEL OVAL TUBES MANUFACTURER IN INDIA, OVAL STAINLESS TUBE, SS OVAL TUBE EXPORTER, STAINLESS STEEL 316L OVAL TUBE DEALER, STAINLESS STEEL 201 OVAL TUBE SUPPLIERE

SIDDHGIRI TUBES one of the leading manufacturer, stockist & exporter of Stainless Steel Oval Tube. We ensure the highest surface quality in all of our Stainless Steel Elliptical Oval Tubes. The Production of Stainless Steel Seamless Oval Tubes is hot finished, cold finished and annealed. All of Our 304 Oval Stainless Steel Tubing meets and exceeds the industry's strict specifications, so you know you are receiving the highest-quality Oval Tube available today. We supply stainless steel 316 Oval Tube for semiconductor, pharmaceutical, the nuclear power, oil and gas, military and commercial aircraft programs and sports firms.we are one of the leading Stainless Steel Oval Tube manufacturers in India. Buy stainless steel 201 Oval Tube at best price in India from us as compared to the market price.

Stainless Steel Oval Tube SPECIFICATION

As the largest stockholder of SS Oval Tube includes grades Stainless Steel 316 Oval Tube, Stainless steel 316L Oval Tube, Stainless Steel 304L Oval Tube and Stainless Steel 201 Oval Tube those are used in various industrial applications.

Specification

Size Range 10 mm OD to 50.8 mm OD
Outside Diameter 6.00 mm to 101.60 mm
Wall Thickness 0.70 mm to 8.00 mm
Length up to 20 m (65.62 ft) Length & Customed Required Length
Dimenisons ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS
Standard ASTM A 213, A 268, A 269, A 789, Equivalent to ASME, EN, JIS Etc.
Material SS 304, stainless steel 304L,Stainless Steel 316,SS 316L


As the largest stockholder of SS Oval Tube includes grades Stainless Steel 316 Oval Tube, Stainless steel 316L Oval Tube, Stainless Steel 304L Oval Tube and Stainless Steel 201 Oval Tube those are used in various industrial applications.

Stainless Steel Heat Excahnger Tube SIZES

SS Square pipes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a Stainless Steel Heat Excahnger Tube is manufactured in sizes from 1/8” to 24” according to current standards ASTM, API and ASME. If required for special projects we can also supply SS Square seamless pipes & SS Square welded pipes for bigger sizes starting from outside diameter 26” up to 48”. More Information of Stainless Steel Pipe Sizes and Stainless Steel Heat Excahnger Tube weight chart

  • • Machinery
  • • Automative
  • • Transport
  • • construction
  • • Home and commercial fixtures

Stainless Steel Heat Excahnger Tube Thickness

Outside Minimum wall thickness
diameter BWG (inch) 20 (.035) 18 (.049) 16 (.065) 14 (.083) 13 (.095) 12 (.109) 11 (.120) 10 (.134) 9 (.148) 8 (.165) 7 (.180) 6 (.203) 5 (.220)
[mm] [inch]
[mm]
 0,89 1,24 1,65 2,11 2,41 2,77 3,05 3,40 3,76 4,19 4,57 5,16 5,59

  1/2 lb/ft 0,190 0,256 0,327 0,399 0,441 0,487 0,519 0,555 0,586

12,70 .500 kg/m 0,283 0,381 0,487 0,594 0,657 0,725 0,773 0,826 0,873

  5/8 lb/ft 0,242 0,328 0,423 0,521 0,581 0,647 0,696 0,752 0,804

15,88 .625 kg/m 0,360 0,488 0,630 0,776 0,865 0,964 1,036 1,120 1,198

  3/4 lb/ft   0,400 0,518 0,643 0,720 0,807 0,872 0,948 1,021

19,05 .750 kg/m   0,595 0,771 0,957 1,072 1,202 1,299 1,412 1,521

  7/8 lb/ft   0,472 0,614 0,767 0,864 0,973 1,056 1,158

22,23 .875 kg/m   0,702 0,913 1,141 1,285 1,448 1,571 1,722

  1 lb/ft   0,543 0,709 0,887 0,998 1,128 1,225 1,342 1,456 1,587 1,696

25,40 1.000 kg/m   0,808 1,056 1,321 1,487 1,680 1,824 1,998 2,169 2,363 2,526

  1 1/4 lb/ft   0,686 0,900 1,131 1,277 1,448 1,577 1,734 1,891 2,071 2,225 2,451 2,607

31,75 1.250 kg/m   1,022 1,340 1,684 1,902 2,157 2,349 2,583 2,816 3,085 3,313 3,650 3,882

  1 1/2 lb/ft   0,830 1,090 1,375 1,556 1,769 1,930 2,128 2,326 2,556 2,753 3,047 3,253

38,10 1.500 kg/m   1,236 1,624 2,048 2,317 2,634 2,875 3,169 3,464 3,807 4,100 4,538 4,845

  2 lb/ft     1,472 1,863 2,114 2,409 2,636 2,914 3,196 3,525 3,810 4,241 4,547

50,80 2.000 kg/m     2,192 2,775 3,148 3,588 3,925 4,340 4,759 5,250 5,674 6,316 6,771

  2 1/2 lb/ft     1,854 2,351 2,671 3,050 3,341 3,701 4,066 4,494 4,867 5,435 5,839

63,50 2.500 kg/m     2,761 3,502 3,978 4,542 4,976 5,512 6,055 6,693 7,249 8,094 8,696

  3 lb/ft       2,840 3,228 3,691 4,047 4,487 4,935 5,464 5,924 6,628 7,132

76,20 3.000 kg/m       4,229 4,808 5,497 6,027 6,683 7,350 8,137 8,823 9,871 10,622


a
a


COLD DRAWN HEAT EXCHANGERS TUBES WITH AVERAGE WALL THICKNESS (SIZES IN INCHES)

aaa

Outside Average wall thickness
diameter BWG (inch) 20 (.035) 18 (.049) 16 (.065) 14 (.083) 13 (.095) 12 (.109) 11 (.120) 10 (.134) 9 (.148) 8 (.165) 7 (.180) 6 (.203) 5 (.220)
[mm] [inch]
[mm]
 0,89 1,24 1,65 2,11 2,41 2,77 3,05 3,40 3,76 4,19 4,57 5,16 5,59

  1/2 lb/ft 0.173 0.236 0.302 0.369 0.410 0.445 0.487 0.523 0.557

12,70 .500 kg/m 0,259 0,351 0,450 0,551 0,612 0,678 0,726 0,780 0,829

  5/8 lb/ft 0.220 0.301 0.388 0.480 0.537 0.600 0.647 0.703 0.754

15,88 .625 kg/m 0,328 0,447 0,579 0,716 0,801 0,897 0,965 1,046 1,124

  3/4 lb/ft 0.267 0.366 0.475 0.591 0.664 0.745 0.807 0.881 0.952

19,05 .750 kg/m 0,398 0,547 0,708 0,881 0,989 1,110 1,203 1,312 1,418

  7/8 lb/ft   0.432 0.562 0.702 0.791 0.891 0.967 1.060

22,23 .875 kg/m   0,643 0,836 1,045 1,177 1,326 1,439 1,577

  1 lb/ft   0.497 0.649 0.812 0.918 1.037 1.128 1.239 1.346 1.471 1.575

25,40 1.000 kg/m   0,740 0,966 1,212 1,366 1,550 1,681 1,845 2,006 2,192 2,347

  1 1/4 lb/ft   0.628 0.822 1.034 1.172 1.328 1.448 1.597 1.741 1.912 2.056 2.272 2.417

31,75 1.250 kg/m   0,933 1,225 1,542 1,744 1,980 2,159 2,377 2,595 2,848 3,063 3,383 3,606

  1 1/2 lb/ft   0.759 0.996 1.256 1.426 1.619 1.769 1.955 2.137 2.353 2.537 2.814 3.009

38,10 1.500 kg/m   1,127 1,483 1,870 2,121 2,413 2,636 2,909 3,184 3,504 3,779 4,191 4,481

  2 lb/ft     1.343 1.699 1.933 2.201 2.409 2.670 2.929 3.246 3.499 3.896 4.185

50,80 2.000 kg/m     2,000 2,533 2,876 3,281 3,591 3,974 4,362 4,816 5,210 5,807 6,232

  2 1/2 lb/ft     1.690 2.143 2.440 2.783 3.050 3.385 3.717 4.126 4.460 4.980 5.360

63,50 2.500 kg/m     2,517 3,194 3,631 4,148 4,547 5,039 5,539 6,128 6,641 7,424 7,983

  3 lb/ft       2.586 2.947 3.365 3.691 4.102 4.508 5.006 5.421 6.064 6.536

76,20 3.000 kg/m       3,855 4,385 5,016 5,502 6,104 6,717 7,440 8,072 9,040 9,734

Stainless Steel Square Oval Section / Size / Dimensions / Weight Chart

Size (mm) Thickness (mm) Kg / Metre
20 X 20 Size (mm)2 Thickness (mm)1.11 Kg / Metre
25 X 25 Size (mm)2 Thickness (mm)1.43 Kg / Metre
25 X 25 Size (mm)2.5 Thickness (mm)1.74 Kg / Metre
25 X 25 Size (mm)3 Thickness (mm)2.04 Kg / Metre
30 X 30 Size (mm)2 Thickness (mm)1.74 Kg / Metre
30 X 30 Size (mm)2.5 Thickness (mm)2.14 Kg / Metre
30 X 30 Size (mm)3 Thickness (mm)2.51 Kg / Metre
30 X 30 Size (mm)3.2 Thickness (mm)2.65 Kg / Metre
40 X 40 Size (mm)2 Thickness (mm)2.37 Kg / Metre
40 X 40 Size (mm)2.5 Thickness (mm)2.92 Kg / Metre
40 X 40 Size (mm)3 Thickness (mm)3.45 Kg / Metre
40 X 40 Size (mm)4 Thickness (mm)4.46 Kg / Metre
40 X 40 Size (mm)5 Thickness (mm)5.40 Kg / Metre
50 X 50 Size (mm)2 Thickness (mm)3.00 Kg / Metre
50 X 50 Size (mm)2.5 Thickness (mm)3.71 Kg / Metre
50 X 50 Size (mm)3 Thickness (mm)4.39 Kg / Metre
50 X 50 Size (mm)4 Thickness (mm)5.72 Kg / Metre
50 X 50 Size (mm)5 Thickness (mm)6.97 Kg / Metre
50 X 50 Size (mm)6 Thickness (mm)8.20 Kg / Metre
50 X 50 Size (mm)8 Thickness (mm)10.50 Kg / Metre
60 X 60 Size (mm)3 Thickness (mm)5.34 Kg / Metre
60 X 60 Size (mm)3.2 Thickness (mm)5.67 Kg / Metre
60 X 60 Size (mm)3.6 Thickness (mm)6.34 Kg / Metre
60 X 60 Size (mm)4 Thickness (mm)6.97 Kg / Metre
60 X 60 Size (mm)5 Thickness (mm)8.54 Kg / Metre
70 X 70 Size (mm)2.5 Thickness (mm)5.28 Kg / Metre
70 X 70 Size (mm)3 Thickness (mm)6.28 Kg / Metre
70 X 70 Size (mm)3.5 Thickness (mm)7.25 Kg / Metre
70 X 70 Size (mm)3.6 Thickness (mm)7.46 Kg / Metre
70 X 70 Size (mm)4 Thickness (mm)8.23 Kg / Metre
70 X 70 Size (mm)5 Thickness (mm)10.10 Kg / Metre
70 X 70 Size (mm)8 Thickness (mm)15.29 Kg / Metre
70 X 70 Size (mm)10 Thickness (mm)19.13 Kg / Metre
80 X 80 Size (mm)3 Thickness (mm)7.22 Kg / Metre
80 X 80 Size (mm)3.5 Thickness (mm)8.35 Kg / Metre
80 X 80 Size (mm)3.6 Thickness (mm)8.59 Kg / Metre
80 X 80 Size (mm)4 Thickness (mm)9.48 Kg / Metre
80 X 80 Size (mm)5 Thickness (mm)11.70 Kg / Metre
80 X 80 Size (mm)6 Thickness (mm)13.80 Kg / Metre
80 X 80 Size (mm)6.3 Thickness (mm)14.40 Kg / Metre
80 X 80 Size (mm)8 Thickness (mm)17.83 Kg / Metre
80 X 80 Size (mm)10 Thickness (mm)21.88 Kg / Metre
90 X 90 Size (mm)3 Thickness (mm)8.16 Kg / Metre
90 X 90 Size (mm)3.5 Thickness (mm)9.45 Kg / Metre
90 X 90 Size (mm)3.6 Thickness (mm)9.72 Kg / Metre
90 X 90 Size (mm)4 Thickness (mm)10.70 Kg / Metre
90 X 90 Size (mm)5 Thickness (mm)13.30 Kg / Metre
90 X 90 Size (mm)6 Thickness (mm)15.70 Kg / Metre
90 X 90 Size (mm)6.3 Thickness (mm)16.40 Kg / Metre
90 X 90 Size (mm)8 Thickness (mm)20.32 Kg / Metre
90 X 90 Size (mm)10 Thickness (mm)25.53 Kg / Metre
100 X 100 Size (mm)3 Thickness (mm)9.10 Kg / Metre
100 X 100 Size (mm)4 Thickness (mm)12.00 Kg / Metre
100 X 100 Size (mm)5 Thickness (mm)14.80 Kg / Metre
100 X 100 Size (mm)6 Thickness (mm)17.60 Kg / Metre
100 X 100 Size (mm)6.3 Thickness (mm)18.40 Kg / Metre
100 X 100 Size (mm)8 Thickness (mm)22.90 Kg / Metre
100 X 100 Size (mm)10 Thickness (mm)27.86 Kg / Metre
100 X 100 Size (mm)12 Thickness (mm)33.44 Kg / Metre
120 X 120 Size (mm)4 Thickness (mm)14.50 Kg / Metre
120 X 120 Size (mm)5 Thickness (mm)18.00 Kg / Metre
120 X 120 Size (mm)6 Thickness (mm)21.30 Kg / Metre
120 X 120 Size (mm)6.3 Thickness (mm)22.30 Kg / Metre
120 X 120 Size (mm)8 Thickness (mm)27.90 Kg / Metre
120 X 120 Size (mm)10 Thickness (mm)34.13 Kg / Metre
120 X 120 Size (mm)12 Thickness (mm)39.94 Kg / Metre
120 X 120 Size (mm)16 Thickness (mm)54.64 Kg / Metre
140 X 140 Size (mm)6 Thickness (mm)25.97 Kg / Metre
140 X 140 Size (mm)8 Thickness (mm)32.89 Kg / Metre
140 X 140 Size (mm)10 Thickness (mm)41.15 Kg / Metre
150 X 150 Size (mm)4 Thickness (mm)18.30 Kg / Metre
150 X 150 Size (mm)5 Thickness (mm)22.70 Kg / Metre
150 X 150 Size (mm)6 Thickness (mm)27.00 Kg / Metre
150 X 150 Size (mm)6.3 Thickness (mm)28.30 Kg / Metre
150 X 150 Size (mm)8 Thickness (mm)35.40 Kg / Metre
150 X 150 Size (mm)10 Thickness (mm)43.47 Kg / Metre
150 X 150 Size (mm)12 Thickness (mm)53.48 Kg / Metre
150 X 150 Size (mm)16 Thickness (mm)65.05 Kg / Metre
160 X 160 Size (mm)6 Thickness (mm)27.39 Kg / Metre
160 X 160 Size (mm)8 Thickness (mm)36.90 Kg / Metre
160 X 160 Size (mm)10 Thickness (mm)46.88 Kg / Metre
180 X 180 Size (mm)5 Thickness (mm)27.97 Kg / Metre
180 X 180 Size (mm)6 Thickness (mm)33.26 Kg / Metre
180 X 180 Size (mm)8 Thickness (mm)43.00 Kg / Metre
180 X 180 Size (mm)10 Thickness (mm)53.00 Kg / Metre
180 X 180 Size (mm)12 Thickness (mm)61.01 Kg / Metre
180 X 180 Size (mm)12.5 Thickness (mm)65.20 Kg / Metre
180 X 180 Size (mm)16 Thickness (mm)81.30 Kg / Metre
200 X 200 Size (mm)5 Thickness (mm)31.18 Kg / Metre
200 X 200 Size (mm)6 Thickness (mm)37.09 Kg / Metre
200 X 200 Size (mm)8 Thickness (mm)48.00 Kg / Metre
200 X 200 Size (mm)10 Thickness (mm)59.30 Kg / Metre
200 X 200 Size (mm)12 Thickness (mm)68.84 Kg / Metre
200 X 200 Size (mm)12.5 Thickness (mm)73.00 Kg / Metre
200 X 200 Size (mm)16 Thickness (mm)90.91 Kg / Metre
250 X 250 Size (mm)6 Thickness (mm)46.83 Kg / Metre
250 X 250 Size (mm)8 Thickness (mm)60.50 Kg / Metre
250 X 250 Size (mm)10 Thickness (mm)75.00 Kg / Metre
250 X 250 Size (mm)12 Thickness (mm)88.45 Kg / Metre
250 X 250 Size (mm)12.5 Thickness (mm)92.70 Kg / Metre
250 X 250 Size (mm)16 Thickness (mm)111.48 Kg / Metre
300 X 300 Size (mm)6 Thickness (mm)55.30 Kg / Metre
300 X 300 Size (mm)8 Thickness (mm)74.18 Kg / Metre
300 X 300 Size (mm)10 Thickness (mm)90.70 Kg / Metre
300 X 300 Size (mm)12 Thickness (mm)108.68 Kg / Metre
300 X 300 Size (mm)12.5 Thickness (mm)112.00 Kg / Metre
300 X 300 Size (mm)16 Thickness (mm)141.84 Kg / Metre
350 X 350 Size (mm)10 Thickness (mm)105.93 Kg / Metre
350 X 350 Size (mm)12 Thickness (mm)126.74 Kg / Metre
350 X 350 Size (mm)16 Thickness (mm)166.94 Kg / Metre
400 X 400 Size (mm)8 Thickness (mm)97.56 Kg / Metre
400 X 400 Size (mm)10 Thickness (mm)121.95 Kg / Metre
400 X 400 Size (mm)12 Thickness (mm)151.97 Kg / Metre
400 X 400 Size (mm)16 Thickness (mm)191.94 Kg / Metr
Sizes (mm)
20 x 10 x 0.5 -1.5
24 x 13 x 0.5 -1.5
22 x 15 x 0.5-1.5
25 x 14 x 0.5-1.5
30 x 10 x 0.5-1.5
30 x 15 x 0.5-1.5
33 x 13 x 0.5-1.5
30 x 20 x 0.5-1.5
38 x 15 x 0.5-1.5
40 x 20 x 0.5-1.5
38 x 25 x 0.5-1.5
41 x 26 x 0.5-1.5
45 x 30 x 0.5-2.0
45 x 28 x 0.5-2.0
49 x 25 x 0.5-2.0
50 x 20 x 0.5-2.0
50 x 30 x 0.5-2.0
60 x 20 x 0.5-2.0
54 x 34 x 0.5-2.0
60 x 30 x 0.5-2.0
65 x 36 x 0.5-2.0
60 x 40 x 0.5-2.0
58 x 43 x 0.5-2.0
80 x 25 x 0.5-2.0
79.6 x 33.8 x 0.5-2.0
80 x 40 x 0.5-2.0
76 x 48 x 0.5-2.0
93 x 55 x 0.5-2.0
90 x 60 x 0.5-2.0
100 x 46 x 0.5-2.0
110 x 40 x 0.5-2.0
120 x 48 x 1.0-5.0
120 x 50 x 1.0-5.0
115 x 58 x 1.0-5.0
105 x 70 x 1.0-5.0
90 x 50 x 1.0-5.0
113 x 74 x 1.0-5.0
150 x 50 x 1.0-5.0
131 x 68 x 1.0-5.0
120 x 80 x 1.0-5.0
141 x 70 x 1.0-5.0
150 x 60 x 1.0-5.0
150 x 70 x 1.0-5.0
160 x 72 x 1.0-5.0
180 x 75 x 1.0-5.0
180 x 95 x 1.0-5.0
203 x 107 x 1.0-5.0
215 x 113 x 1.0-5.0
300 x 125 x 1.0-5.0

Stainless Steel Heat Excahnger Tube SCHEDULE CHART

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″

1/4″

3/8″

1/2″
3/4″
1″
1 1/4″
1 1/2″
2″
2 1/2″
3″
4″
5″

6″


SS SQUARE PIPE NOMINAL BORE SCHEDULE SIZES

Nominal SS Schedule 5 SS Schedule 10 SS Schedule 40
Inch MM Wt./MM Kg./M Kg./Ft Wt./MM Kg./M Kg./Ft Wt./MM Kg./M Kg./Ft
1 / 2 21 1.65 0.801 0.244 2.11 0.999 0.305 2.77 1.270 0.387
3 / 4 21.30 1.65 1.020 0.311 2.11 1.280 0.390 2.87 1.680 0.512
1 26.70 1.65 1.290 0.393 2.77 2.090 0.637 3.38 2.500 0.762
1 1 / 4 33.40 1.65 1.650 0.503 2.77 2.690 0.820 3.56 3.380 1.030
1 1 / 2 42.20 1.65 1.900 0.579 2.77 3.110 0.948 3.68 4.050 1.230
2 48.30 1.65 3.340 0.728 2.77 3.920 1.200
2 1 / 2 73.00 2.11 3.690 1.130 3.05 5.260 1.600
3 88.90 2.11 4.510 1.380 3.05 6.450 1.970
3 1 / 2 101.60 2.11 5.190 1.580 3.05 7.400 2.260

Stainless Steel Heat Excahnger Tube PRESSURE RATING

SIZE SINGLE BRAID DOUBLE BRAID
Nominal Size Static  Dynamic bend radius Max. working Test pressure Burst  Static  Dynamic bend radius Max. working Test pressure Burst
bend radius pressure pressure bend radius pressure pressure
Inch mm mm mm bar bar bar mm mm bar bar bar
1/4 6 25 100 154 230 616 25 100 246 369 984
3/8 10 40 150 105 157 420 40 150 168 252 672
1/2 12 50 200 88 132 352 50 200 140 210 560
5/8 16 50 200 73 109 292 50 200 116 174 464
3/4 20 70 200 64 96 256 70 200 102 153 408
1 25 90 200 50 75 200 90 200 80 120 320
1¼ 32 110 250 42 63 168 110 250 67 100 268
1 ½ 40 130 250 32 48 128 130 250 51 76 204
2 50 175 350 31 46 124 175 350 49 73 196
2 ½ 65 200 410 26 39 104 200 410 41 61 164
3 80 205 450 18 27 72 205 450 28 42 112
4 100 230 560 16 24 64 230 560 26 39 104
5 125 280 660 16 24 64 280 660 25 37 100
6 150 320 815 12 18 48 320 815 20 30 80
8 200 435 1015 10 16 40 435 1015 16 24 64
10 250 560 1220 6.5 10 26 560 1220 10.5 16 42

STAINLESS STEEL PIPE TOLERANCES

NPS Designator Permissible Variations in Outside Diameter
Over In. Under In.
1/8 to 1-1/2, incl 1/64 (0.015) 1/32 (0.031)
Over 1-1/2 to 4, incl 1/32 (0.031) 1/32 (0.031)
Over 4 to 8, incl 1/16 (0.062) 1/32 (0.031)
Over 8 to 18, incl 3/23 (0.093) 1/32 (0.031)

Nominal Wall Thickness:

  • Nominal Wall Tolerance Plus 12.5%, Minus 12.5%
  • These do not conform to the American National Standard for Welded and Seamless Wrought Steel Pipe (ANSI B 36.10 – 1979)
    • NPS Designator Outside Diameter in. Schedule 10S in. Schedule 40S in. Schedule 80S in. Schedule 160 in. Schedule XX in.
    1/4 0.540 0.065 0.088 0.119
    3/8 0.675 0.065 0.091 0.126
    1/2 0.840 0.083 0.109 0.147 .188 .294
    3/4 1.050 0.083 0.113 0.154 .218 .308
    1.0 1.315 0.109 0.133 0.179 .250 .358
    1 1/4 1.660 0.109 0.140 0.191 .250 .382
    1 1/2 1.900 0.109 0.145 0.200 .281 .400
    2 2.375 0.109 0.154 0.218 .343 .436
    2 1/2 2.875 0.120 0.203 0.276 .375 .552
    3 3.500 0.120 0.216 0.300 .438 .600
    3 1/2 4.000 0.120 0.226 0.318   .636
    4 4.500 0.120 0.237 0.337 .534 .674
    5 5.563 0.134 0.258 0.375 .625 .750
    6 6.625 0.134 0.280 0.432 .719 .864
    8 8.625 0.148 0.322 0.500 .906 .875
    10 10.750 0.165 0.365 0.500 1.125
    12 12.750 0.180 0.375 0.500 1.312
    14 14.000 0.188 0.375 0.500 1.406
    16 16.000 0.188 0.375 0.500 1.594

    Minimum Wall Thickness on Inspection:

  • The following equation, upon which this table is based, may be applied to calculate minimum wall thicknesses from nominal wall thickness:
    • tn * 0.875 = tm Where: tn = nominal wall thickness, in. [mm], and tm= minimum wall thicknesses, in. [mm]
    • The wall thickness is inch-pound units is rounded to three decimal places in accordance with the rounding method of Practice E29. The wall thickness in SI units is rounded to one decimal place in accordance with the rounding method of Practice E29.
  • This table is a master table covering wall thicknesses available in the purchase of different classifications of pipe, but it is not meant to imply that all the walls listed herein are necessarily obtainable for the applicable product specification.
    • Nominal Thickness Minimum Thickness on Inspection Nominal Thickness Minimum Thickness on Inspection Nominal Thickness Minimum Thickness on Inspection
    in. mm in mm in mm in mm in mm in mm
    0.068 1.7 0.060 1.5 0.294 7.5 0.257 6.5 0.750 19.0 0.658 16.6
    0.068 2.2 0.077 2.0 0.300 7.6 0.262 6.7 0.812 20.6 0.710 18.0
    0.091 2.3 0.080 2.0 0.307 7.8 0.269 6.8 0.843 21.4 0.736 18.7
    0.095 2.4 0.083 2.1 0.308 7.8 0.270 6.9 0.854 21.7 0.756 19.2
    0.113 2.9 0.099 2.5 0.312 7.9 0.273 6.9 0.875 22.2 0.766 19.5
    0.119 3.0 0.104 2.6 0.318 8.1 0.278 7.1 0.906 23.0 0.783 20.1
    0.125 3.2 0.109 2.8 0.322 8.2 0.282 7.2 0.937 23.8 0.820 20.8
    0.126 3.2 0.110 2.8 0.330 8.4 0.289 7.3 0.968 24.6 0.847 21.5
    0.133 3.4 0.116 2.9 0.337 8.6 0.295 7.5 1.000 25.4 0.875 22.2
    0.140 3.6 0.122 3.1 0.343 8.7 0.300 7.6 1.031 26.2 0.902 22.9
    0.145 3.7 0.127 3.2 0.344 8.7 0.301 7.6 1.062 27.0 0.929 23.6
    0.147 3.7 0.129 3.3 0.358 9.1 0.313 8.0 1.083 27.8 0.956 24.3
    0.154 3.9 0.135 3.4 0.365 9.3 0.319 8.1 1.125 28.6 0.984 25.0
    0.156 4.0 0.136 3.5 0.375 9.5 0.328 8.3 1.156 29.4 1.012 25.7
    0.179 4.5 0.157 4.0 0.382 9.7 0.334 8.5 1.218 30.9 1.066 27.1
    0.187 43.7 0.164 4.2 0.400 10.2 0.350 8.9 1.250 31.8 1.094 27.8
    0.188 4.8 0.164 4.2 0.406 10.3 0.355 9.0 1.281 32.5 1.121 28.5
    0.191 4.9 0.167 4.2 0.432 10.4 0.378 9.6 1.312 33.3 1.148 29.2
    0.200 5.1 0.175 4.4 0.436 11.1 0.382 9.7 1.343 34.1 1.175 29.8
    0.203 5.2 0.178 4.5 0.437 11.1 0.382 9.7 1.375 34.9 1.203 30.6
    0.216 5.5 0.189 4.8 0.438 11.1 0.383 9.7 1.406 35.7 1.230 31.2
    0.218 5.5 0.191 4.9 0.500 12.7 0.438 11.1 1.436 36.5 1.258 32.0
    0.219 5.6 0.192 4.9 0.531 13.5 0.465 11.8 1.500 36.1 1.312 33.3
    0.226 5.7 0.196 5.0 0.552 14.0 0.483 12.3 1.531 38.9 1.340 34.0
    0.237 6.0 0.207 5.2 0.562 14.3 0.492 12.5 1.562 39.7 1.367 34.7
    0.250 6.4 0.219 5.6 0.593 15.1 0.519 13.2 1.593 40.5 1.394 35.4
    0.258 6.6 0.226 5.7 0.600 15.2 0.525 13.3 1.750 44.5 1.531 38.9
    0.276 7.0 0.242 6.1 0.625 15.9 0.547 13.9 1.781 45.2 1.558 39.6
    0.277 7.0 0.242 6.1 0.656 16.6 0.573 14.6 1.812 46.0 1.586 49.3
    0.279 7.1 0.244 6.2 0.674 17.1 0.590 15.0 1.968 50.0 1.772 43.7
    0.280 7.1 0.245 6.2 0.687 17.4 0.601 15.3 2.062 52.4 1.804 45.8
    0.281 7.1 0.246 6.2 0.719 18.3 0.629 16.0 2.343 59.5 2.050 52.1

    Stainless Steel Heat Excahnger Tube CHEMICAL COMPOSITION

    The below table shows the chemical composition of the used for Stainless Steel Pipes:

    GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
    TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
    TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
    TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
    TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0

    Stainless Steel Heat Excahnger Tube MECHANICAL PROPERTIES

    Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
    Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
      º F(º C)
    TP304 Solution 1900 (1040) 75(515) 30(205) 35
    TP304L Solution 1900 (1040) 70(485) 25(170) 35
    TP316 Solution 1900(1040) 75(515) 30(205) 35
    TP316L Solution 1900(1040) 70(485) 25(170) 35

    AVAILABLE STOCK OF SS SQUARE PIPE

    Stainless Steel Seamless Square Pipe Supplier & Manufacturer in India SS Seamless Square Pipe Supplier
    Seamless SS Square Pipe Supplier & Manufacturer in India SS Oval Square Pipe Supplier & Manufacturer in India
    Stainless Steel Heat Excahnger Tube Suppliers & Manufacturer in India Stainless Steel Heat Excahnger Tube Exporter
    304 Stainless Steel Heat Excahnger Tube Suppliers & Manufacturer in India 316L Stainless Steel Heat Excahnger Tube
    SS Square Pipe Oval Sections Supplier & Manufacturer in India ASTM A312 TP304 SS Square Pipe Supplier & Manufacturer in India
    SS Bright Annealed Square Pipe ASTM A312 TP304LStainless Steel Supplier & Manufacturer in India
    Stainless Steel 201 Square Pipes Supplier & Manufacturer in India Stainless Steel Square 316 Pipe Supplier
    Large Diameter Stainless Steel Heat Excahnger Tube ASTM A312 TP304/304L SS Square Pipe Supplier & Manufacturer in India
    SS Square Pipe Supplier & Manufacturer in India ASTM A312 TP316 Stainless Steel Supplier & Manufacturer in India
    Hot Rolled Stainless Steel Heat Excahnger Tube Suppliers & Manufacturer in India ASTM A312 TP316L Stainless SS & Manufacturer in India
    1/2″ NB in Thickness Schedule Stainless Steel Heat Excahnger Tube ASTM A312 TP201 Stainless Steel Heat Excahnger Tube
    4″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India ASTM A312 TP316/316L Stainless Steel Heat Excahnger Tube Suppliers
    5″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India Schedule 40 SS Square Pipe Supplier & Manufacturer in India
    6″ NB in Thickness Schedule Stainless Steel Heat Excahnger Tube Suppliers & Manufacturer in India Schedule 80 Stainless Steel Heat Excahnger Tube Suppliers & Manufacturer in India
    7″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India Schedule 10 SS Square Pipe Supplier
    8″ NB in Thickness Schedule Stainless Steel Heat Excahnger Tube Suppliers & Manufacturer in India Sch 5 Stainless Steel Heat Excahnger Tube Suppliers
    14″ NB in Thickness Schedule SS Square Pipe Supplier Stainless Steel Heat Excahnger Tube Weight per meter
    16″ NB in Thickness Schedule Stainless Steel Heat Excahnger Tube Supplier & Manufacturer in India Weight of Stainless Steel Heat Excahnger Tube
    18″ NB in Thickness Schedule SS Square Pipe Supplier Stainless Steel Heat Excahnger Tube Price in India

    PACKAGING AND LABELING

    To ensure the safe transportation of our products, we take meticulous care in packaging them. In the case of exports, we employ standard wooden cases for packaging. Each pipe is marked with essential information, including Grade, Lot No, Size, Degree, and our trademark. Furthermore, we can provide custom markings on our products upon special requests.

    QUALITY ASSURANCE

    Our Products maintains stringent quality control measures for all fittings and bars throughout every production stage, from the procurement of raw materials to the dispatch of the final products. Visual inspections ensure compliance with industry-standard codes and regulations such as ASTM, ASME, MSS, DIN, EN, and JIS. Should the need arise, we can arrange for official certified Inspection Agencies to witness material reports, dimensions, and product quality conformity.

    TEST CERTIFICATES

    Our products come with a Manufacturer Test Certificate per EN 10204 / 3.1B and a Raw Materials Certificate. In addition, they undergo a 100% Radiography Test, and Third Party Inspection Reports can also be provided.

    SHIPPING POLICY

    The delivery time and dates are determined based on the type and quantity of steel ordered. Our sales team will provide a delivery schedule when you request a quotation. Please note that the delivery schedule may occasionally be subject to change, so we recommend checking with our sales department when placing your orders. Orders are typically dispatched within 2-3 business days and may take 5-10 business days to reach their destination. If Forgings are out of stock, orders may require 2-4 weeks for shipping. Our Products will promptly notify the buyer if such a situation occurs.

    Aluminium Rods

    Stainless Steel Square Rod

    Aluminium Rod

    Stainless Steel Rods

    Aluminium Rod

    Stainless Steel Rods

    Aluminium Rod

    Stainless Steel Heat Excahnger Tubes

    Industry We Serve

    Application Industry

    Cities We Deliver To

    Istanbul, Coimbatore, Jamshedpur, Haryana, Dammam, Ankara, Hyderabad, Sharjah, Kuala Lumpur, Mumbai, Surat, Ranchi, Pune, Bangkok, Busan, Kuwait City, Singapore, Indore, Vadodara, Madrid, Al Jubail, Dallas, Faridabad, Secunderabad, Toronto, Petaling Jaya, Brisbane, Jaipur, Thiruvananthapuram, Colombo, Atyrau, Algiers, Los Angeles, Houston, Visakhapatnam, Tehran, Thane, Doha, Hanoi, Edmonton, Karachi, Cairo, Gurgaon, Jakarta, Ahmedabad, Geoje-si, Ho Chi Minh City, Chiyoda, Kanpur, Riyadh, Rajkot, Bhopal, La Victoria, Milan, Muscat, Chennai, Bogota, Gimhae-si, New York, Ernakulam, Granada, Santiago, Ludhiana, Dubai, Kolkata, Caracas, Howrah, Jeddah, Lahore, Courbevoie, Perth, Pimpri-Chinchwad, Aberdeen, Manama, Nagpur, Ahvaz, Montreal, Seoul, Bengaluru, Sydney, Al Khobar, Lagos, Calgary, Vung Tau, New Delhi, Nashik, Ulsan, Noida, Mexico City, Hong Kong, Rio de Janeiro, Abu Dhabi, Melbourne, Chandigarh, Baroda, Port-of-Spain, London, Navi Mumbai, Moscow.

    Countries We Deliver To

    Peru, Kazakhstan, Bolivia, Bhutan, Poland, Nigeria, China, Bangladesh, Norway, Estonia, Costa Rica, Taiwan, Sri Lanka, Qatar, Iran, Canada, Zimbabwe, Malaysia, Morocco, Denmark, Poland, Thailand, Egypt, Iran, Gabon, Lithuania, Netherlands, Belgium, Bulgaria, Bahrain, Mexico, Japan, Turkey, Portugal, Venezuela, South Korea, Ecuador, United Arab Emirates, Namibia, Hong Kong, Ghana, Slovakia, Germany, Austria, Vietnam, Gambia, Mongolia, Ireland, Italy, Romania, United States, Kuwait, Spain, Indonesia, Greece, France, Chile, Czech Republic, Nigeria, Israel, Tunisia, Libya, Ukraine, Nepal, Jordan, Brazil, Serbia, Afghanistan, South Africa, Lebanon, Chile, Angola, Philippines, Hungary, Mexico, Yemen, United Kingdom, Sweden, Tibet, Macau, Kenya, Puerto Rico, New Zealand, Singapore, Algeria, Azerbaijan, Oman, Pakistan, India, Saudi Arabia, Russia, Iraq, Australia, Finland, Colombia, Argentina, Croatia, Belarus, Switzerland, Trinidad & Tobago.

    Other Available Products of Aluminium Rods

    »   Stainless Steel Round Pipe
    »   Stainless Steel Rectangular Pipe
    »   Stainless Steel Hydraulic Pipe
    »   Stainless Steel Heat Excahnger Tube
    »   Stainless Steel 304 Pipe
    »   Stainless Steel 304L Pipe
    »   Stainless Steel ERW Pipe
    »   Stainless Steel 316 Pipe
    »   Stainless Steel 316L Pipe

    »   Stainless Steel Heat Excahnger Tube
    »   Stainless Steel Perforated Pipe

    People also search for Stainless Steel Products

    Stainless Steel Tube price per kg, Stainless Steel Heat Excahnger Tube manufacturers in india, Stainless Steel Heat Excahnger Tube, Stainless Steel Perforated Pipe.
