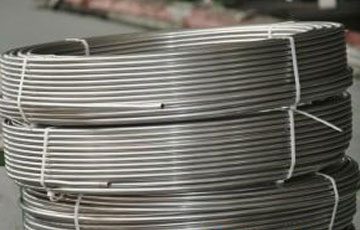

Stainless Steel Capillary Tube

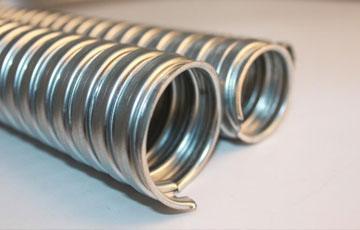

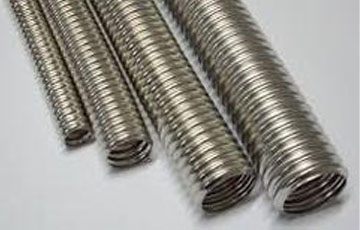

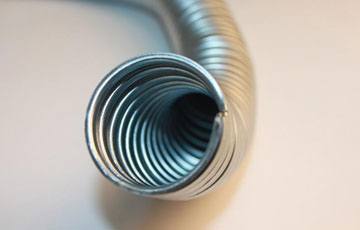

STAINLESS STEEL 304 CORRUGATED TUBE MANUFACTURER, STAINLESS STEEL 304L CORRUGATED TUBE, SEAMLESS Stainless Steel Capillary Tube

STAINLESS STEEL WELDED CAPILLARY TUBE, ESI STAINLESS STEEL CAPILLARY TUBING IMPORTER

one of the reputed manufacturer, supplier & exporter of Stainless Steel Capillary Tube. We specialize in the supply of high quality Seamless Capillary Tubing in stainless steel 316 and 304 grades which are highly resistant to corrosion. 316 SS Capillary Tubing is the preferred choice for most applications due to greater corrosion resistance and precision. We ensure the highest surface quality in all of our SS Capillary Tubing. We offered 304l stainless steel capillary tube Tubes are polished, cleaned, passivated and are ready for immediate use. We are also well known 316 SS Capillary Tubing Tube Manufacturer in India. Buy SS Capillary tubing at best price in India from us as compared to the market price.

Stainless Steel Capillary Tube SPECIFICATION

Siddhgiri Tubes offering Stainless Steel Capillary Tube in customized designs. SS 304 Square Pipes are used for pressure operations such as moving liquids and gases in processing operations in the water treatment, chemical, petrochemical, food processing, dairy and marine industries. Welded tube is used as handrails, legs for office, kitchen, and hospital equipment and as architectural supports. Siddhgiri Tubes is specialized as providing Stainless Steel Capillary Tube in Polished Grit 120 - 600 finish. SS Square pipe dimensions are nominated by outside diameter indicated by the NPS (imperial) or DN (metric) designator and sometimes referred to as the 'nominal bore' - and wall thickness is determined by the schedule number.

Specification

Size Range 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Thickness 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Wall Thickness 0.08 – 0.2 mm
Outside Diameter 0.3 –12.0 mm
Specification ASME / ASTM A213, ASTM A688 / A688M - 08, ASTM A803 / A803M, ASTM A556 / A556M, ASME SA556, ASME SA688
Material SS 304, SS 304L,SS 316,SS 316L
Finish Pickled, Polished, Bright Annealed, Electrolytic Polished
Form Round, Strait, Hydraulic etc.
Type As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed
Mill Test Certificate EN10204 3.1
Packing Sleeved, Ends Capped, Wooden Boxed


We offer Stainless Steel 304L Capillary Tube in small bore sizes and precise thickness are available as per the requirements of clients. Stainless Steel Capillary Tubes sizes range from 0.30 mm to 8.00 mm. They can be availed in standard or heavy wall. Stainless Steel 316 Capillary Tube diameters of refrigerant capillary tubes range from 0.30 mm to 31.75 mm O.D. And 0.06 mm to 1.65 mm thickness and the length ranges from 1.0 mm to 6.0 mm. It is widely used in instrumentation Industries. Stainless Steel 304 capillary tubes and Stainless Steel 316 capillary tubes are available in precise cut to lengths are also highly effective in a wide range of temperatures. SS 304 capillary tubing is widely used for high-pressure applications. Our offered SS capillary tubes are mostly used for Liquid/ Gas Transportation Lines, Hydraulic control lines, Medical devices and equipment’s, Chromatography applications, Measurement devices, Remote thermometer systems Small precision stainless steel antenna, Watches, Car antenna tube, Laser engraving equipment, etc. As the largest stockholder of SS Capillary Tube includes grades SS 304 Capillary Tube, SS 304L Capillary Tube, Stainless Steel 316 Capillary Tube, Stainless steel 316L Capillary Tube and Stainless Steel 201 Capillary Tube those are used in various industrial applications.

Stainless Steel Capillary Tube SIZES

SS Square pipes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a Stainless Steel Capillary Tube is manufactured in sizes from 1/8” to 24” according to current standards ASTM, API and ASME. If required for special projects we can also supply SS Square seamless pipes & SS Square welded pipes for bigger sizes starting from outside diameter 26” up to 48”. More Information of Stainless Steel Pipe Sizes and Stainless Steel Capillary Tube weight chart

  • • Machinery
  • • Automative
  • • Transport
  • • construction
  • • Home and commercial fixtures

Stainless Steel Capillary Tube DIMENSIONS AND WEIGHTS

Gauge Outside Diameter Tolerance mm Regular Wall (RW) mm Thin Wall (TW) mm Extra Thin Wall (XTW) mm Ultra Thin Wall (UTW) mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114   0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114   0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127   0.051 – 0.102
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292

Stainless Steel Square Hollow Section / Size / Dimensions / Weight Chart

Size (mm) Thickness (mm) Kg / Metre
20 X 20 Size (mm) 2 Thickness (mm) 1.11 Kg / Metre
25 X 25 Size (mm) 2 Thickness (mm) 1.43 Kg / Metre
25 X 25 Size (mm) 2.5 Thickness (mm) 1.74 Kg / Metre
25 X 25 Size (mm) 3 Thickness (mm) 2.04 Kg / Metre
30 X 30 Size (mm) 2 Thickness (mm) 1.74 Kg / Metre
30 X 30 Size (mm) 2.5 Thickness (mm) 2.14 Kg / Metre
30 X 30 Size (mm) 3 Thickness (mm) 2.51 Kg / Metre
30 X 30 Size (mm) 3.2 Thickness (mm) 2.65 Kg / Metre
40 X 40 Size (mm) 2 Thickness (mm) 2.37 Kg / Metre
40 X 40 Size (mm) 2.5 Thickness (mm) 2.92 Kg / Metre
40 X 40 Size (mm) 3 Thickness (mm) 3.45 Kg / Metre
40 X 40 Size (mm) 4 Thickness (mm) 4.46 Kg / Metre
40 X 40 Size (mm) 5 Thickness (mm) 5.40 Kg / Metre
50 X 50 Size (mm) 2 Thickness (mm) 3.00 Kg / Metre
50 X 50 Size (mm) 2.5 Thickness (mm) 3.71 Kg / Metre
50 X 50 Size (mm) 3 Thickness (mm) 4.39 Kg / Metre
50 X 50 Size (mm) 4 Thickness (mm) 5.72 Kg / Metre
50 X 50 Size (mm) 5 Thickness (mm) 6.97 Kg / Metre
50 X 50 Size (mm) 6 Thickness (mm) 8.20 Kg / Metre
50 X 50 Size (mm) 8 Thickness (mm) 10.50 Kg / Metre
60 X 60 Size (mm) 3 Thickness (mm) 5.34 Kg / Metre
60 X 60 Size (mm) 3.2 Thickness (mm) 5.67 Kg / Metre
60 X 60 Size (mm) 3.6 Thickness (mm) 6.34 Kg / Metre
60 X 60 Size (mm) 4 Thickness (mm) 6.97 Kg / Metre
60 X 60 Size (mm) 5 Thickness (mm) 8.54 Kg / Metre
70 X 70 Size (mm) 2.5 Thickness (mm) 5.28 Kg / Metre
70 X 70 Size (mm) 3 Thickness (mm) 6.28 Kg / Metre
70 X 70 Size (mm) 3.5 Thickness (mm) 7.25 Kg / Metre
70 X 70 Size (mm) 3.6 Thickness (mm) 7.46 Kg / Metre
70 X 70 Size (mm) 4 Thickness (mm) 8.23 Kg / Metre
70 X 70 Size (mm) 5 Thickness (mm) 10.10 Kg / Metre
70 X 70 Size (mm) 8 Thickness (mm) 15.29 Kg / Metre
70 X 70 Size (mm) 10 Thickness (mm) 19.13 Kg / Metre
80 X 80 Size (mm) 3 Thickness (mm) 7.22 Kg / Metre
80 X 80 Size (mm) 3.5 Thickness (mm) 8.35 Kg / Metre
80 X 80 Size (mm) 3.6 Thickness (mm) 8.59 Kg / Metre
80 X 80 Size (mm) 4 Thickness (mm) 9.48 Kg / Metre
80 X 80 Size (mm) 5 Thickness (mm) 11.70 Kg / Metre
80 X 80 Size (mm) 6 Thickness (mm) 13.80 Kg / Metre
80 X 80 Size (mm) 6.3 Thickness (mm) 14.40 Kg / Metre
80 X 80 Size (mm) 8 Thickness (mm) 17.83 Kg / Metre
80 X 80 Size (mm) 10 Thickness (mm) 21.88 Kg / Metre
90 X 90 Size (mm) 3 Thickness (mm) 8.16 Kg / Metre
90 X 90 Size (mm) 3.5 Thickness (mm) 9.45 Kg / Metre
90 X 90 Size (mm) 3.6 Thickness (mm) 9.72 Kg / Metre
90 X 90 Size (mm) 4 Thickness (mm) 10.70 Kg / Metre
90 X 90 Size (mm) 5 Thickness (mm) 13.30 Kg / Metre
90 X 90 Size (mm) 6 Thickness (mm) 15.70 Kg / Metre
90 X 90 Size (mm) 6.3 Thickness (mm) 16.40 Kg / Metre
90 X 90 Size (mm) 8 Thickness (mm) 20.32 Kg / Metre
90 X 90 Size (mm) 10 Thickness (mm) 25.53 Kg / Metre
100 X 100 Size (mm) 3 Thickness (mm) 9.10 Kg / Metre
100 X 100 Size (mm) 4 Thickness (mm) 12.00 Kg / Metre
100 X 100 Size (mm) 5 Thickness (mm) 14.80 Kg / Metre
100 X 100 Size (mm) 6 Thickness (mm) 17.60 Kg / Metre
100 X 100 Size (mm) 6.3 Thickness (mm) 18.40 Kg / Metre
100 X 100 Size (mm) 8 Thickness (mm) 22.90 Kg / Metre
100 X 100 Size (mm) 10 Thickness (mm) 27.86 Kg / Metre
100 X 100 Size (mm) 12 Thickness (mm) 33.44 Kg / Metre
120 X 120 Size (mm) 4 Thickness (mm) 14.50 Kg / Metre
120 X 120 Size (mm) 5 Thickness (mm) 18.00 Kg / Metre
120 X 120 Size (mm) 6 Thickness (mm) 21.30 Kg / Metre
120 X 120 Size (mm) 6.3 Thickness (mm) 22.30 Kg / Metre
120 X 120 Size (mm) 8 Thickness (mm) 27.90 Kg / Metre
120 X 120 Size (mm) 10 Thickness (mm) 34.13 Kg / Metre
120 X 120 Size (mm) 12 Thickness (mm) 39.94 Kg / Metre
120 X 120 Size (mm) 16 Thickness (mm) 54.64 Kg / Metre
140 X 140 Size (mm) 6 Thickness (mm) 25.97 Kg / Metre
140 X 140 Size (mm) 8 Thickness (mm) 32.89 Kg / Metre
140 X 140 Size (mm) 10 Thickness (mm) 41.15 Kg / Metre
150 X 150 Size (mm) 4 Thickness (mm) 18.30 Kg / Metre
150 X 150 Size (mm) 5 Thickness (mm) 22.70 Kg / Metre
150 X 150 Size (mm) 6 Thickness (mm) 27.00 Kg / Metre
150 X 150 Size (mm) 6.3 Thickness (mm) 28.30 Kg / Metre
150 X 150 Size (mm) 8 Thickness (mm) 35.40 Kg / Metre
150 X 150 Size (mm) 10 Thickness (mm) 43.47 Kg / Metre
150 X 150 Size (mm) 12 Thickness (mm) 53.48 Kg / Metre
150 X 150 Size (mm) 16 Thickness (mm) 65.05 Kg / Metre
160 X 160 Size (mm) 6 Thickness (mm) 27.39 Kg / Metre
160 X 160 Size (mm) 8 Thickness (mm) 36.90 Kg / Metre
160 X 160 Size (mm) 10 Thickness (mm) 46.88 Kg / Metre
180 X 180 Size (mm) 5 Thickness (mm) 27.97 Kg / Metre
180 X 180 Size (mm) 6 Thickness (mm) 33.26 Kg / Metre
180 X 180 Size (mm) 8 Thickness (mm) 43.00 Kg / Metre
180 X 180 Size (mm) 10 Thickness (mm) 53.00 Kg / Metre
180 X 180 Size (mm) 12 Thickness (mm) 61.01 Kg / Metre
180 X 180 Size (mm) 12.5 Thickness (mm) 65.20 Kg / Metre
180 X 180 Size (mm) 16 Thickness (mm) 81.30 Kg / Metre
200 X 200 Size (mm) 5 Thickness (mm) 31.18 Kg / Metre
200 X 200 Size (mm) 6 Thickness (mm) 37.09 Kg / Metre
200 X 200 Size (mm) 8 Thickness (mm) 48.00 Kg / Metre
200 X 200 Size (mm) 10 Thickness (mm) 59.30 Kg / Metre
200 X 200 Size (mm) 12 Thickness (mm) 68.84 Kg / Metre
200 X 200 Size (mm) 12.5 Thickness (mm) 73.00 Kg / Metre
200 X 200 Size (mm) 16 Thickness (mm) 90.91 Kg / Metre
250 X 250 Size (mm) 6 Thickness (mm) 46.83 Kg / Metre
250 X 250 Size (mm) 8 Thickness (mm) 60.50 Kg / Metre
250 X 250 Size (mm) 10 Thickness (mm) 75.00 Kg / Metre
250 X 250 Size (mm) 12 Thickness (mm) 88.45 Kg / Metre
250 X 250 Size (mm) 12.5 Thickness (mm) 92.70 Kg / Metre
250 X 250 Size (mm) 16 Thickness (mm) 111.48 Kg / Metre
300 X 300 Size (mm) 6 Thickness (mm) 55.30 Kg / Metre
300 X 300 Size (mm) 8 Thickness (mm) 74.18 Kg / Metre
300 X 300 Size (mm) 10 Thickness (mm) 90.70 Kg / Metre
300 X 300 Size (mm) 12 Thickness (mm) 108.68 Kg / Metre
300 X 300 Size (mm) 12.5 Thickness (mm) 112.00 Kg / Metre
300 X 300 Size (mm) 16 Thickness (mm) 141.84 Kg / Metre
350 X 350 Size (mm) 10 Thickness (mm) 105.93 Kg / Metre
350 X 350 Size (mm) 12 Thickness (mm) 126.74 Kg / Metre
350 X 350 Size (mm) 16 Thickness (mm) 166.94 Kg / Metre
400 X 400 Size (mm) 8 Thickness (mm) 97.56 Kg / Metre
400 X 400 Size (mm) 10 Thickness (mm) 121.95 Kg / Metre
400 X 400 Size (mm) 12 Thickness (mm) 151.97 Kg / Metre
400 X 400 Size (mm) 16 Thickness (mm) 191.94 Kg / Metr
Size kg / m
12 x 12 x 1.5 mm 0.59
15 x 15 x 1.2 mm 0.54
15 x 15 x 1.5 mm 0.66
20 x 20 x 1.2 mm 0.73
20 x 20 x 1.5 mm 0.90
20 x 20 x 2.0 mm 0.18
25 x 25 x 1.2 mm 0.93
25 x 25 x 1.5 mm 1.15
25 x 25 x 2.0 mm 1.50
25 x 25 x 3.0 mm 2.22
30 x 30 x 1.2 mm 1.11
30 x 30 x 1.5 mm 1.37
30 x 30 x 2.0 mm 1.84
30 x 30 x 3.0 mm 2.72
40 x 40 x 1.2 mm 1.50
40 x 40 x 1.5 mm 1.86
40 x 40 x 2.0 mm 2.45
40 x 40 x 3.0 mm 3.76

Stainless Steel Capillary Tube SCHEDULE CHART

NB SIZES SCH 5 SCH 10 SCH 40 SCH 80 SCH 160
1/8″

1/4″

3/8″

1/2″
3/4″
1″
1 1/4″
1 1/2″
2″
2 1/2″
3″
4″
5″

6″


SS SQUARE PIPE NOMINAL BORE SCHEDULE SIZES

Nominal SS Schedule 5 SS Schedule 10 SS Schedule 40
Inch MM Wt./MM Kg./M Kg./Ft Wt./MM Kg./M Kg./Ft Wt./MM Kg./M Kg./Ft
1 / 2 21 1.65 0.801 0.244 2.11 0.999 0.305 2.77 1.270 0.387
3 / 4 21.30 1.65 1.020 0.311 2.11 1.280 0.390 2.87 1.680 0.512
1 26.70 1.65 1.290 0.393 2.77 2.090 0.637 3.38 2.500 0.762
1 1 / 4 33.40 1.65 1.650 0.503 2.77 2.690 0.820 3.56 3.380 1.030
1 1 / 2 42.20 1.65 1.900 0.579 2.77 3.110 0.948 3.68 4.050 1.230
2 48.30 1.65 3.340 0.728 2.77 3.920 1.200
2 1 / 2 73.00 2.11 3.690 1.130 3.05 5.260 1.600
3 88.90 2.11 4.510 1.380 3.05 6.450 1.970
3 1 / 2 101.60 2.11 5.190 1.580 3.05 7.400 2.260

Stainless Steel Capillary Tube PRESSURE RATING

Pressure Rating (psig)
Pipe Size
(inches)
Pipe Schedule Temperature (oF)
100 200 300 400 500 600 650 700 750
1" 40 3048 2629 2362 2171 2019 1924 1867 1824 1810
80 4213 3634 3265 3002 2791 2659 2580 2528 2501
160 6140 5296 4759 4375 4068 3876 3761 3684 3646
1 1/2" 40 2257 1947 1750 1608 1496 1425 1383 1354 1340
80 3182 2744 2466 2267 2108 2009 1949 1909 1889
160 4619 3984 3580 3291 3060 2916 2829 2772 2743
2" 40 1902 1640 1474 1355 1260 1201 1165 1141 1129
80 2747 2369 2129 1957 1820 1734 1682 1648 1631
160 4499 3880 3486 3205 2980 2840 2755 2699 2671
3" 40 1806 1558 1400 1287 1196 1140 1106 1084 1072
80 2553 2202 1979 1819 1691 1612 1564 1532 1516
160 3840 3312 2976 2736 2544 2424 2352 2304 2280
4" 40 1531 1321 1187 1091 1014 967 938 919 909
80 2213 1909 1715 1577 1466 1397 1355 1328 1314
160 3601 3106 2791 2566 2386 2273 2206 2161 2138
5" 40 1342 1158 1040 956 889 847 822 805 797
80 1981 1709 1535 1411 1312 1250 1213 1189 1176
160 3414 2945 2646 2433 2262 2155 2091 2049 2027
6" 40 1219 1052 945 869 808 770 747 732 724
80 1913 1650 1483 1363 1267 1208 1172 1148 1136
160 3289 2836 2549 2343 2179 2076 2014 1973 1953
8" 40 1073 926 832 765 711 678 657 644 637
80 1692 1459 1311 1205 1121 1068 1036 1015 1005
160 3175 2738 2460 2262 2103 2004 1944 1905 1885
10" 40 974 840 755 694 645 615 596 584 578
80 1609 1388 1247 1147 1066 1016 986 966 956
160 3147 2714 2439 2242 2085 1986 1927 1880 1868

STAINLESS STEEL PIPE TOLERANCES

NPS Designator Permissible Variations in Outside Diameter
Over In. Under In.
1/8 to 1-1/2, incl 1/64 (0.015) 1/32 (0.031)
Over 1-1/2 to 4, incl 1/32 (0.031) 1/32 (0.031)
Over 4 to 8, incl 1/16 (0.062) 1/32 (0.031)
Over 8 to 18, incl 3/23 (0.093) 1/32 (0.031)

Nominal Wall Thickness:

  • Nominal Wall Tolerance Plus 12.5%, Minus 12.5%
  • These do not conform to the American National Standard for Welded and Seamless Wrought Steel Pipe (ANSI B 36.10 – 1979)
  • NPS Designator Outside Diameter in. Schedule 10S in. Schedule 40S in. Schedule 80S in. Schedule 160 in. Schedule XX in.
    1/4 0.540 0.065 0.088 0.119
    3/8 0.675 0.065 0.091 0.126
    1/2 0.840 0.083 0.109 0.147 .188 .294
    3/4 1.050 0.083 0.113 0.154 .218 .308
    1.0 1.315 0.109 0.133 0.179 .250 .358
    1 1/4 1.660 0.109 0.140 0.191 .250 .382
    1 1/2 1.900 0.109 0.145 0.200 .281 .400
    2 2.375 0.109 0.154 0.218 .343 .436
    2 1/2 2.875 0.120 0.203 0.276 .375 .552
    3 3.500 0.120 0.216 0.300 .438 .600
    3 1/2 4.000 0.120 0.226 0.318   .636
    4 4.500 0.120 0.237 0.337 .534 .674
    5 5.563 0.134 0.258 0.375 .625 .750
    6 6.625 0.134 0.280 0.432 .719 .864
    8 8.625 0.148 0.322 0.500 .906 .875
    10 10.750 0.165 0.365 0.500 1.125
    12 12.750 0.180 0.375 0.500 1.312
    14 14.000 0.188 0.375 0.500 1.406
    16 16.000 0.188 0.375 0.500 1.594

    Minimum Wall Thickness on Inspection:

  • The following equation, upon which this table is based, may be applied to calculate minimum wall thicknesses from nominal wall thickness:
    • tn * 0.875 = tm Where: tn = nominal wall thickness, in. [mm], and tm= minimum wall thicknesses, in. [mm]
    • The wall thickness is inch-pound units is rounded to three decimal places in accordance with the rounding method of Practice E29. The wall thickness in SI units is rounded to one decimal place in accordance with the rounding method of Practice E29.
  • This table is a master table covering wall thicknesses available in the purchase of different classifications of pipe, but it is not meant to imply that all the walls listed herein are necessarily obtainable for the applicable product specification.
  • Nominal Thickness Minimum Thickness on Inspection Nominal Thickness Minimum Thickness on Inspection Nominal Thickness Minimum Thickness on Inspection
    in. mm in mm in mm in mm in mm in mm
    0.068 1.7 0.060 1.5 0.294 7.5 0.257 6.5 0.750 19.0 0.658 16.6
    0.068 2.2 0.077 2.0 0.300 7.6 0.262 6.7 0.812 20.6 0.710 18.0
    0.091 2.3 0.080 2.0 0.307 7.8 0.269 6.8 0.843 21.4 0.736 18.7
    0.095 2.4 0.083 2.1 0.308 7.8 0.270 6.9 0.854 21.7 0.756 19.2
    0.113 2.9 0.099 2.5 0.312 7.9 0.273 6.9 0.875 22.2 0.766 19.5
    0.119 3.0 0.104 2.6 0.318 8.1 0.278 7.1 0.906 23.0 0.783 20.1
    0.125 3.2 0.109 2.8 0.322 8.2 0.282 7.2 0.937 23.8 0.820 20.8
    0.126 3.2 0.110 2.8 0.330 8.4 0.289 7.3 0.968 24.6 0.847 21.5
    0.133 3.4 0.116 2.9 0.337 8.6 0.295 7.5 1.000 25.4 0.875 22.2
    0.140 3.6 0.122 3.1 0.343 8.7 0.300 7.6 1.031 26.2 0.902 22.9
    0.145 3.7 0.127 3.2 0.344 8.7 0.301 7.6 1.062 27.0 0.929 23.6
    0.147 3.7 0.129 3.3 0.358 9.1 0.313 8.0 1.083 27.8 0.956 24.3
    0.154 3.9 0.135 3.4 0.365 9.3 0.319 8.1 1.125 28.6 0.984 25.0
    0.156 4.0 0.136 3.5 0.375 9.5 0.328 8.3 1.156 29.4 1.012 25.7
    0.179 4.5 0.157 4.0 0.382 9.7 0.334 8.5 1.218 30.9 1.066 27.1
    0.187 43.7 0.164 4.2 0.400 10.2 0.350 8.9 1.250 31.8 1.094 27.8
    0.188 4.8 0.164 4.2 0.406 10.3 0.355 9.0 1.281 32.5 1.121 28.5
    0.191 4.9 0.167 4.2 0.432 10.4 0.378 9.6 1.312 33.3 1.148 29.2
    0.200 5.1 0.175 4.4 0.436 11.1 0.382 9.7 1.343 34.1 1.175 29.8
    0.203 5.2 0.178 4.5 0.437 11.1 0.382 9.7 1.375 34.9 1.203 30.6
    0.216 5.5 0.189 4.8 0.438 11.1 0.383 9.7 1.406 35.7 1.230 31.2
    0.218 5.5 0.191 4.9 0.500 12.7 0.438 11.1 1.436 36.5 1.258 32.0
    0.219 5.6 0.192 4.9 0.531 13.5 0.465 11.8 1.500 36.1 1.312 33.3
    0.226 5.7 0.196 5.0 0.552 14.0 0.483 12.3 1.531 38.9 1.340 34.0
    0.237 6.0 0.207 5.2 0.562 14.3 0.492 12.5 1.562 39.7 1.367 34.7
    0.250 6.4 0.219 5.6 0.593 15.1 0.519 13.2 1.593 40.5 1.394 35.4
    0.258 6.6 0.226 5.7 0.600 15.2 0.525 13.3 1.750 44.5 1.531 38.9
    0.276 7.0 0.242 6.1 0.625 15.9 0.547 13.9 1.781 45.2 1.558 39.6
    0.277 7.0 0.242 6.1 0.656 16.6 0.573 14.6 1.812 46.0 1.586 49.3
    0.279 7.1 0.244 6.2 0.674 17.1 0.590 15.0 1.968 50.0 1.772 43.7
    0.280 7.1 0.245 6.2 0.687 17.4 0.601 15.3 2.062 52.4 1.804 45.8
    0.281 7.1 0.246 6.2 0.719 18.3 0.629 16.0 2.343 59.5 2.050 52.1

    Stainless Steel Capillary Tube CHEMICAL COMPOSITION

    The below table shows the chemical composition of the used for Stainless Steel Pipes:

    GRADES UNS C Mn P S Si Cr Ni Mo Ti Nb N
    TP304 S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
    TP304L S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
    TP316 S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
    TP316L S31603 0.035 2 0.045 0.03 1 16.0-18.0 10.0-14.0 2.0-3.0

    Stainless Steel Capillary Tube MECHANICAL PROPERTIES

    Material Heat Temperure Tensile Strength Yield Strength Elongation %, Min
    Treatment Min. Ksi (MPa), Min. Ksi (MPa), Min.
      º F(º C)
    TP304 Solution 1900 (1040) 75(515) 30(205) 35
    TP304L Solution 1900 (1040) 70(485) 25(170) 35
    TP316 Solution 1900(1040) 75(515) 30(205) 35
    TP316L Solution 1900(1040) 70(485) 25(170) 35

    AVAILABLE STOCK OF SS SQUARE PIPE

    Stainless Steel Seamless Square Pipe Supplier & Manufacturer in India SS Seamless Square Pipe Supplier
    Seamless SS Square Pipe Supplier & Manufacturer in India SS Polished Square Pipe Supplier & Manufacturer in India
    Stainless Steel Capillary Tube Suppliers & Manufacturer in India Stainless Steel Capillary Tube Exporter
    304 Stainless Steel Capillary Tube Suppliers & Manufacturer in India 316L Stainless Steel Capillary Tube
    SS Square Pipe Hollow Sections Supplier & Manufacturer in India ASTM A312 TP304 SS Square Pipe Supplier & Manufacturer in India
    SS Bright Annealed Square Pipe ASTM A312 TP304LStainless Steel Supplier & Manufacturer in India
    Stainless Steel 201 Square Pipes Supplier & Manufacturer in India Stainless Steel Square 316 Pipe Supplier
    Large Diameter Stainless Steel Capillary Tube ASTM A312 TP304/304L SS Square Pipe Supplier & Manufacturer in India
    SS Square Pipe Supplier & Manufacturer in India ASTM A312 TP316 Stainless Steel Supplier & Manufacturer in India
    Hot Rolled Stainless Steel Capillary Tube Suppliers & Manufacturer in India ASTM A312 TP316L Stainless SS & Manufacturer in India
    1/2″ NB in Thickness Schedule Stainless Steel Capillary Tube ASTM A312 TP201 Stainless Steel Capillary Tube
    4″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India ASTM A312 TP316/316L Stainless Steel Capillary Tube Suppliers
    5″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India Schedule 40 SS Square Pipe Supplier & Manufacturer in India
    6″ NB in Thickness Schedule Stainless Steel Capillary Tube Suppliers & Manufacturer in India Schedule 80 Stainless Steel Capillary Tube Suppliers & Manufacturer in India
    7″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India Schedule 10 SS Square Pipe Supplier
    8″ NB in Thickness Schedule Stainless Steel Capillary Tube Suppliers & Manufacturer in India Sch 5 Stainless Steel Capillary Tube Suppliers
    14″ NB in Thickness Schedule SS Square Pipe Supplier Stainless Steel Capillary Tube Weight per meter
    16″ NB in Thickness Schedule Stainless Steel Capillary Tube Supplier & Manufacturer in India Weight of Stainless Steel Capillary Tube
    18″ NB in Thickness Schedule SS Square Pipe Supplier Stainless Steel Capillary Tube Price in India

    PACKAGING AND LABELING

    To ensure the safe transportation of our products, we take meticulous care in packaging them. In the case of exports, we employ standard wooden cases for packaging. Each pipe is marked with essential information, including Grade, Lot No, Size, Degree, and our trademark. Furthermore, we can provide custom markings on our products upon special requests.

    QUALITY ASSURANCE

    Our Products maintains stringent quality control measures for all fittings and bars throughout every production stage, from the procurement of raw materials to the dispatch of the final products. Visual inspections ensure compliance with industry-standard codes and regulations such as ASTM, ASME, MSS, DIN, EN, and JIS. Should the need arise, we can arrange for official certified Inspection Agencies to witness material reports, dimensions, and product quality conformity.

    TEST CERTIFICATES

    Our products come with a Manufacturer Test Certificate per EN 10204 / 3.1B and a Raw Materials Certificate. In addition, they undergo a 100% Radiography Test, and Third Party Inspection Reports can also be provided.

    SHIPPING POLICY

    The delivery time and dates are determined based on the type and quantity of steel ordered. Our sales team will provide a delivery schedule when you request a quotation. Please note that the delivery schedule may occasionally be subject to change, so we recommend checking with our sales department when placing your orders. Orders are typically dispatched within 2-3 business days and may take 5-10 business days to reach their destination. If Forgings are out of stock, orders may require 2-4 weeks for shipping. Our Products will promptly notify the buyer if such a situation occurs.

    Aluminium Rods

    Stainless Steel Square Rod

    Aluminium Rod

    Stainless Steel Rods

    Aluminium Rod

    Stainless Steel Rods

    Aluminium Rod

    Stainless Steel Capillary Tubes

    Industry We Serve

    Application Industry

    Cities We Deliver To

    Istanbul, Coimbatore, Jamshedpur, Haryana, Dammam, Ankara, Hyderabad, Sharjah, Kuala Lumpur, Mumbai, Surat, Ranchi, Pune, Bangkok, Busan, Kuwait City, Singapore, Indore, Vadodara, Madrid, Al Jubail, Dallas, Faridabad, Secunderabad, Toronto, Petaling Jaya, Brisbane, Jaipur, Thiruvananthapuram, Colombo, Atyrau, Algiers, Los Angeles, Houston, Visakhapatnam, Tehran, Thane, Doha, Hanoi, Edmonton, Karachi, Cairo, Gurgaon, Jakarta, Ahmedabad, Geoje-si, Ho Chi Minh City, Chiyoda, Kanpur, Riyadh, Rajkot, Bhopal, La Victoria, Milan, Muscat, Chennai, Bogota, Gimhae-si, New York, Ernakulam, Granada, Santiago, Ludhiana, Dubai, Kolkata, Caracas, Howrah, Jeddah, Lahore, Courbevoie, Perth, Pimpri-Chinchwad, Aberdeen, Manama, Nagpur, Ahvaz, Montreal, Seoul, Bengaluru, Sydney, Al Khobar, Lagos, Calgary, Vung Tau, New Delhi, Nashik, Ulsan, Noida, Mexico City, Hong Kong, Rio de Janeiro, Abu Dhabi, Melbourne, Chandigarh, Baroda, Port-of-Spain, London, Navi Mumbai, Moscow.

    Countries We Deliver To

    Peru, Kazakhstan, Bolivia, Bhutan, Poland, Nigeria, China, Bangladesh, Norway, Estonia, Costa Rica, Taiwan, Sri Lanka, Qatar, Iran, Canada, Zimbabwe, Malaysia, Morocco, Denmark, Poland, Thailand, Egypt, Iran, Gabon, Lithuania, Netherlands, Belgium, Bulgaria, Bahrain, Mexico, Japan, Turkey, Portugal, Venezuela, South Korea, Ecuador, United Arab Emirates, Namibia, Hong Kong, Ghana, Slovakia, Germany, Austria, Vietnam, Gambia, Mongolia, Ireland, Italy, Romania, United States, Kuwait, Spain, Indonesia, Greece, France, Chile, Czech Republic, Nigeria, Israel, Tunisia, Libya, Ukraine, Nepal, Jordan, Brazil, Serbia, Afghanistan, South Africa, Lebanon, Chile, Angola, Philippines, Hungary, Mexico, Yemen, United Kingdom, Sweden, Tibet, Macau, Kenya, Puerto Rico, New Zealand, Singapore, Algeria, Azerbaijan, Oman, Pakistan, India, Saudi Arabia, Russia, Iraq, Australia, Finland, Colombia, Argentina, Croatia, Belarus, Switzerland, Trinidad & Tobago.

    Other Available Products of Aluminium Rods

    »   Stainless Steel Round Pipe
    »   Stainless Steel Rectangular Pipe
    »   Stainless Steel Hydraulic Pipe
    »   Stainless Steel Oval Pipe
    »   Stainless Steel 304 Pipe
    »   Stainless Steel 304L Pipe
    »   Stainless Steel ERW Pipe
    »   Stainless Steel 316 Pipe
    »   Stainless Steel 316L Pipe

    »   Stainless Steel Hollow Pipe
    »   Stainless Steel Perforated Pipe

    People also search for Stainless Steel Products

    Stainless Steel Tube price per kg, Stainless Steel Capillary Tube manufacturers in india, Stainless Steel Rectangular Pipe, Stainless Steel Perforated Pipe.
