Stainless Steel Condenser Tube
STAINLESS STEEL 316 CONDENSER TUBING, STAINLESS STEEL 316L CONDENSER TUBE DEALER, STAINLESS STEEL 201 CONDENSER TUBES SUPPLIER, STAINLESS STEEL SEAMLESS CONDENSER TUBE, STAINLESS STEEL WELDED CONDENSER TUBE
SIDHGIRI TUBES is one of the leading supplier & Stockist of Stainless Steel Condenser Tube, specifically designed to efficiently condense process fluid off of the outside of the tube. We supply these Seamless Condenser Tubes in different sizes, shapes, and designs as per clients’ specifications at a reasonable price. We have earned the status of preferred distributor and stockist of stainless steel 304 condenser tube and 304l stainless steel condenser tube in a multitude of sizes ranging from 0.010” to 1.500” OD with wall thickness as light as .003”.Kamal Steel Industries has earned the status of preferred Stainless Steel Seamless Condenser Tube manufacturer in India. We are one of the most trusted exporters, dealer, and trader of Condenser Tubing a number of standard sizes and grades, including 316/316L and 304/304L. Condenser ss tubing is used for parts of energy type equipment such as Condensers, steam pipelines, steam super-heaters, etc. Buy SS Condenser Tube at best price in India.
Stainless Steel Condenser Tube SPECIFICATION

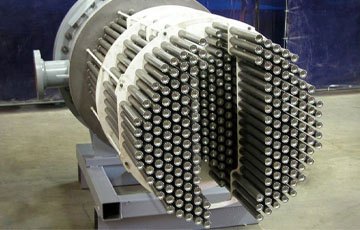

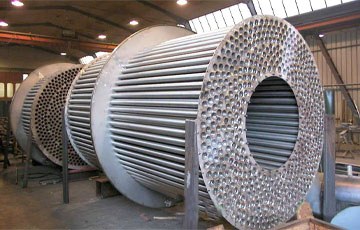

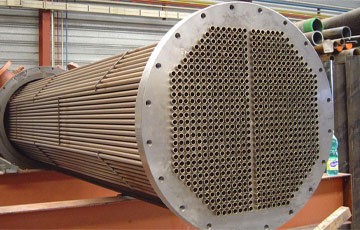

SS Condenser Tube is widespread in heat exchangers, from being part of a condenser and evaporator refrigeration cycle in a chiller to condensing steam in surface condensers, & everything in between. Generally, these Stainless Steel Condenser Tubing is commonly manufactured with an O.D. of 5/8", 3/4", and 1". Some applications, particularly ammonia chillers, use larger O.D. tubes than these. Condenser tubes can also be internally and externally enhanced to further increase their efficiency.
Specification
Stainless Steel Seamless Condenser Tube Specifications | ASTM A213, ASTM A249, ASTM A269 |
Size Range | 6 mm OD to 219.1 mm OD |
Outside Diameter | From 6mm~2500mm |
Length | 1 Mtr Upto 32 Mtrs Long / U-Tube Length – 32 Mtrs U Tube Coil – 50 Mtrs |
Thickness | 0.7 mm Thick To12.7 mm Thick |
Form | Seamless, Welded, Hot Rolled, Cold Drawn |
Shapes | Straight tube, Coil tubing |
Ends | Plain end, Bevelled end |
Grades | TP - 304,304L,316,316L,201 |
SS Condenser Tubes are finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a Stainless Steel Condenser Tube is manufactured according to current standards API, ASTM, and ASME. If required for special projects we can also supply large diameter Condenser Tubes.
Stainless Steel Condenser Tube SIZES
Finished in accordance with customer needs regarding dimensional and wall thickness specifications as well as heat treatment for more demanding applications. In general a Stainless Steel Condenser Tube is manufactured in sizes from 1/8” to 24” according to current standards ASTM, API and ASME. If required for special projects we can also supply SS Square seamless pipes & SS Square welded pipes for bigger sizes starting from outside diameter 26” up to 48”. More Information of Stainless Steel Pipe Sizes and Stainless Steel Condenser Tube weight chart
- • Machinery
- • Automative
- • Transport
- • construction
- • Home and commercial fixtures
Sizes
12.70 mm OD | x | 0.6 mm wall | in lengths up to 20 m (65.62 ft) |
15.00 mm OD | x | 1.22 mm wall | in lengths up to 20 m (65.62 ft) |
19.05 mm OD | x | 1.65 mm wall | in lengths up to 20 m (65.62 ft) |
25.40 mm OD | x | 2.11 mm wall | in lengths up to 20 m (65.62 ft) |
38.10 mm OD | x | 2.64 mm wall | in lengths up to 20 m (65.62 ft) |
Size / Dimensions / Weight Chart
Size (mm) | Thickness (mm) | Kg / Metre |
---|---|---|
20 X 20 Size (mm) | 2 Thickness (mm) | 1.11 Kg / Metre |
25 X 25 Size (mm) | 2 Thickness (mm) | 1.43 Kg / Metre |
25 X 25 Size (mm) | 2.5 Thickness (mm) | 1.74 Kg / Metre |
25 X 25 Size (mm) | 3 Thickness (mm) | 2.04 Kg / Metre |
30 X 30 Size (mm) | 2 Thickness (mm) | 1.74 Kg / Metre |
30 X 30 Size (mm) | 2.5 Thickness (mm) | 2.14 Kg / Metre |
30 X 30 Size (mm) | 3 Thickness (mm) | 2.51 Kg / Metre |
30 X 30 Size (mm) | 3.2 Thickness (mm) | 2.65 Kg / Metre |
40 X 40 Size (mm) | 2 Thickness (mm) | 2.37 Kg / Metre |
40 X 40 Size (mm) | 2.5 Thickness (mm) | 2.92 Kg / Metre |
40 X 40 Size (mm) | 3 Thickness (mm) | 3.45 Kg / Metre |
40 X 40 Size (mm) | 4 Thickness (mm) | 4.46 Kg / Metre |
40 X 40 Size (mm) | 5 Thickness (mm) | 5.40 Kg / Metre |
50 X 50 Size (mm) | 2 Thickness (mm) | 3.00 Kg / Metre |
50 X 50 Size (mm) | 2.5 Thickness (mm) | 3.71 Kg / Metre |
50 X 50 Size (mm) | 3 Thickness (mm) | 4.39 Kg / Metre |
50 X 50 Size (mm) | 4 Thickness (mm) | 5.72 Kg / Metre |
50 X 50 Size (mm) | 5 Thickness (mm) | 6.97 Kg / Metre |
50 X 50 Size (mm) | 6 Thickness (mm) | 8.20 Kg / Metre |
50 X 50 Size (mm) | 8 Thickness (mm) | 10.50 Kg / Metre |
60 X 60 Size (mm) | 3 Thickness (mm) | 5.34 Kg / Metre |
60 X 60 Size (mm) | 3.2 Thickness (mm) | 5.67 Kg / Metre |
60 X 60 Size (mm) | 3.6 Thickness (mm) | 6.34 Kg / Metre |
60 X 60 Size (mm) | 4 Thickness (mm) | 6.97 Kg / Metre |
60 X 60 Size (mm) | 5 Thickness (mm) | 8.54 Kg / Metre |
70 X 70 Size (mm) | 2.5 Thickness (mm) | 5.28 Kg / Metre |
70 X 70 Size (mm) | 3 Thickness (mm) | 6.28 Kg / Metre |
70 X 70 Size (mm) | 3.5 Thickness (mm) | 7.25 Kg / Metre |
70 X 70 Size (mm) | 3.6 Thickness (mm) | 7.46 Kg / Metre |
70 X 70 Size (mm) | 4 Thickness (mm) | 8.23 Kg / Metre |
70 X 70 Size (mm) | 5 Thickness (mm) | 10.10 Kg / Metre |
70 X 70 Size (mm) | 8 Thickness (mm) | 15.29 Kg / Metre |
70 X 70 Size (mm) | 10 Thickness (mm) | 19.13 Kg / Metre |
80 X 80 Size (mm) | 3 Thickness (mm) | 7.22 Kg / Metre |
80 X 80 Size (mm) | 3.5 Thickness (mm) | 8.35 Kg / Metre |
80 X 80 Size (mm) | 3.6 Thickness (mm) | 8.59 Kg / Metre |
80 X 80 Size (mm) | 4 Thickness (mm) | 9.48 Kg / Metre |
80 X 80 Size (mm) | 5 Thickness (mm) | 11.70 Kg / Metre |
80 X 80 Size (mm) | 6 Thickness (mm) | 13.80 Kg / Metre |
80 X 80 Size (mm) | 6.3 Thickness (mm) | 14.40 Kg / Metre |
80 X 80 Size (mm) | 8 Thickness (mm) | 17.83 Kg / Metre |
80 X 80 Size (mm) | 10 Thickness (mm) | 21.88 Kg / Metre |
90 X 90 Size (mm) | 3 Thickness (mm) | 8.16 Kg / Metre |
90 X 90 Size (mm) | 3.5 Thickness (mm) | 9.45 Kg / Metre |
90 X 90 Size (mm) | 3.6 Thickness (mm) | 9.72 Kg / Metre |
90 X 90 Size (mm) | 4 Thickness (mm) | 10.70 Kg / Metre |
90 X 90 Size (mm) | 5 Thickness (mm) | 13.30 Kg / Metre |
90 X 90 Size (mm) | 6 Thickness (mm) | 15.70 Kg / Metre |
90 X 90 Size (mm) | 6.3 Thickness (mm) | 16.40 Kg / Metre |
90 X 90 Size (mm) | 8 Thickness (mm) | 20.32 Kg / Metre |
90 X 90 Size (mm) | 10 Thickness (mm) | 25.53 Kg / Metre |
100 X 100 Size (mm) | 3 Thickness (mm) | 9.10 Kg / Metre |
100 X 100 Size (mm) | 4 Thickness (mm) | 12.00 Kg / Metre |
100 X 100 Size (mm) | 5 Thickness (mm) | 14.80 Kg / Metre |
100 X 100 Size (mm) | 6 Thickness (mm) | 17.60 Kg / Metre |
100 X 100 Size (mm) | 6.3 Thickness (mm) | 18.40 Kg / Metre |
100 X 100 Size (mm) | 8 Thickness (mm) | 22.90 Kg / Metre |
100 X 100 Size (mm) | 10 Thickness (mm) | 27.86 Kg / Metre |
100 X 100 Size (mm) | 12 Thickness (mm) | 33.44 Kg / Metre |
120 X 120 Size (mm) | 4 Thickness (mm) | 14.50 Kg / Metre |
120 X 120 Size (mm) | 5 Thickness (mm) | 18.00 Kg / Metre |
120 X 120 Size (mm) | 6 Thickness (mm) | 21.30 Kg / Metre |
120 X 120 Size (mm) | 6.3 Thickness (mm) | 22.30 Kg / Metre |
120 X 120 Size (mm) | 8 Thickness (mm) | 27.90 Kg / Metre |
120 X 120 Size (mm) | 10 Thickness (mm) | 34.13 Kg / Metre |
120 X 120 Size (mm) | 12 Thickness (mm) | 39.94 Kg / Metre |
120 X 120 Size (mm) | 16 Thickness (mm) | 54.64 Kg / Metre |
140 X 140 Size (mm) | 6 Thickness (mm) | 25.97 Kg / Metre |
140 X 140 Size (mm) | 8 Thickness (mm) | 32.89 Kg / Metre |
140 X 140 Size (mm) | 10 Thickness (mm) | 41.15 Kg / Metre |
150 X 150 Size (mm) | 4 Thickness (mm) | 18.30 Kg / Metre |
150 X 150 Size (mm) | 5 Thickness (mm) | 22.70 Kg / Metre |
150 X 150 Size (mm) | 6 Thickness (mm) | 27.00 Kg / Metre |
150 X 150 Size (mm) | 6.3 Thickness (mm) | 28.30 Kg / Metre |
150 X 150 Size (mm) | 8 Thickness (mm) | 35.40 Kg / Metre |
150 X 150 Size (mm) | 10 Thickness (mm) | 43.47 Kg / Metre |
150 X 150 Size (mm) | 12 Thickness (mm) | 53.48 Kg / Metre |
150 X 150 Size (mm) | 16 Thickness (mm) | 65.05 Kg / Metre |
160 X 160 Size (mm) | 6 Thickness (mm) | 27.39 Kg / Metre |
160 X 160 Size (mm) | 8 Thickness (mm) | 36.90 Kg / Metre |
160 X 160 Size (mm) | 10 Thickness (mm) | 46.88 Kg / Metre |
180 X 180 Size (mm) | 5 Thickness (mm) | 27.97 Kg / Metre |
180 X 180 Size (mm) | 6 Thickness (mm) | 33.26 Kg / Metre |
180 X 180 Size (mm) | 8 Thickness (mm) | 43.00 Kg / Metre |
180 X 180 Size (mm) | 10 Thickness (mm) | 53.00 Kg / Metre |
180 X 180 Size (mm) | 12 Thickness (mm) | 61.01 Kg / Metre |
180 X 180 Size (mm) | 12.5 Thickness (mm) | 65.20 Kg / Metre |
180 X 180 Size (mm) | 16 Thickness (mm) | 81.30 Kg / Metre |
200 X 200 Size (mm) | 5 Thickness (mm) | 31.18 Kg / Metre |
200 X 200 Size (mm) | 6 Thickness (mm) | 37.09 Kg / Metre |
200 X 200 Size (mm) | 8 Thickness (mm) | 48.00 Kg / Metre |
200 X 200 Size (mm) | 10 Thickness (mm) | 59.30 Kg / Metre |
200 X 200 Size (mm) | 12 Thickness (mm) | 68.84 Kg / Metre |
200 X 200 Size (mm) | 12.5 Thickness (mm) | 73.00 Kg / Metre |
200 X 200 Size (mm) | 16 Thickness (mm) | 90.91 Kg / Metre |
250 X 250 Size (mm) | 6 Thickness (mm) | 46.83 Kg / Metre |
250 X 250 Size (mm) | 8 Thickness (mm) | 60.50 Kg / Metre |
250 X 250 Size (mm) | 10 Thickness (mm) | 75.00 Kg / Metre |
250 X 250 Size (mm) | 12 Thickness (mm) | 88.45 Kg / Metre |
250 X 250 Size (mm) | 12.5 Thickness (mm) | 92.70 Kg / Metre |
250 X 250 Size (mm) | 16 Thickness (mm) | 111.48 Kg / Metre |
300 X 300 Size (mm) | 6 Thickness (mm) | 55.30 Kg / Metre |
300 X 300 Size (mm) | 8 Thickness (mm) | 74.18 Kg / Metre |
300 X 300 Size (mm) | 10 Thickness (mm) | 90.70 Kg / Metre |
300 X 300 Size (mm) | 12 Thickness (mm) | 108.68 Kg / Metre |
300 X 300 Size (mm) | 12.5 Thickness (mm) | 112.00 Kg / Metre |
300 X 300 Size (mm) | 16 Thickness (mm) | 141.84 Kg / Metre |
350 X 350 Size (mm) | 10 Thickness (mm) | 105.93 Kg / Metre |
350 X 350 Size (mm) | 12 Thickness (mm) | 126.74 Kg / Metre |
350 X 350 Size (mm) | 16 Thickness (mm) | 166.94 Kg / Metre |
400 X 400 Size (mm) | 8 Thickness (mm) | 97.56 Kg / Metre |
400 X 400 Size (mm) | 10 Thickness (mm) | 121.95 Kg / Metre |
400 X 400 Size (mm) | 12 Thickness (mm) | 151.97 Kg / Metre |
400 X 400 Size (mm) | 16 Thickness (mm) | 191.94 Kg / Metr |
OUTER DIAMETER (OD) | 10.2 – 139.7 mm (from 26.9 mm manufactured as hot rolled) |
WALL THICKNESS (WT) | 0.5 – 16.0 mm (from 2.6 mm manufactured as hot rolled) |
Stainless Steel Condenser Tube SCHEDULE CHART
NB SIZES | SCH 5 | SCH 10 | SCH 40 | SCH 80 | SCH 160 |
---|---|---|---|---|---|
1/8″ |
|||||
1/4″ |
|||||
3/8″ |
|||||
1/2″ |
|||||
3/4″ |
|||||
1″ |
|||||
1 1/4″ |
|||||
1 1/2″ |
|||||
2″ |
|||||
2 1/2″ |
|||||
3″ |
|||||
4″ |
|||||
5″ |
|||||
6″ |
Length Boiler Tube
Length [m] | for sizes [mm] |
5 – 6 | OD < 60.3 |
5 – 6 or 10 – 14 | OD => 60.3 and WT < 7.1 |
5 – 6 | OD => 60.3 and WT => 7.1 |
Stainless Steel Condenser Tube PRESSURE RATING
Pressure Rating (psig) | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Pipe Size (inches) |
Pipe Schedule | Temperature (oF) | ||||||||
100 | 200 | 300 | 400 | 500 | 600 | 650 | 700 | 750 | ||
1" | 40 | 3048 | 2629 | 2362 | 2171 | 2019 | 1924 | 1867 | 1824 | 1810 |
80 | 4213 | 3634 | 3265 | 3002 | 2791 | 2659 | 2580 | 2528 | 2501 | |
160 | 6140 | 5296 | 4759 | 4375 | 4068 | 3876 | 3761 | 3684 | 3646 | |
1 1/2" | 40 | 2257 | 1947 | 1750 | 1608 | 1496 | 1425 | 1383 | 1354 | 1340 |
80 | 3182 | 2744 | 2466 | 2267 | 2108 | 2009 | 1949 | 1909 | 1889 | |
160 | 4619 | 3984 | 3580 | 3291 | 3060 | 2916 | 2829 | 2772 | 2743 | |
2" | 40 | 1902 | 1640 | 1474 | 1355 | 1260 | 1201 | 1165 | 1141 | 1129 |
80 | 2747 | 2369 | 2129 | 1957 | 1820 | 1734 | 1682 | 1648 | 1631 | |
160 | 4499 | 3880 | 3486 | 3205 | 2980 | 2840 | 2755 | 2699 | 2671 | |
3" | 40 | 1806 | 1558 | 1400 | 1287 | 1196 | 1140 | 1106 | 1084 | 1072 |
80 | 2553 | 2202 | 1979 | 1819 | 1691 | 1612 | 1564 | 1532 | 1516 | |
160 | 3840 | 3312 | 2976 | 2736 | 2544 | 2424 | 2352 | 2304 | 2280 | |
4" | 40 | 1531 | 1321 | 1187 | 1091 | 1014 | 967 | 938 | 919 | 909 |
80 | 2213 | 1909 | 1715 | 1577 | 1466 | 1397 | 1355 | 1328 | 1314 | |
160 | 3601 | 3106 | 2791 | 2566 | 2386 | 2273 | 2206 | 2161 | 2138 | |
5" | 40 | 1342 | 1158 | 1040 | 956 | 889 | 847 | 822 | 805 | 797 |
80 | 1981 | 1709 | 1535 | 1411 | 1312 | 1250 | 1213 | 1189 | 1176 | |
160 | 3414 | 2945 | 2646 | 2433 | 2262 | 2155 | 2091 | 2049 | 2027 | |
6" | 40 | 1219 | 1052 | 945 | 869 | 808 | 770 | 747 | 732 | 724 |
80 | 1913 | 1650 | 1483 | 1363 | 1267 | 1208 | 1172 | 1148 | 1136 | |
160 | 3289 | 2836 | 2549 | 2343 | 2179 | 2076 | 2014 | 1973 | 1953 | |
8" | 40 | 1073 | 926 | 832 | 765 | 711 | 678 | 657 | 644 | 637 |
80 | 1692 | 1459 | 1311 | 1205 | 1121 | 1068 | 1036 | 1015 | 1005 | |
160 | 3175 | 2738 | 2460 | 2262 | 2103 | 2004 | 1944 | 1905 | 1885 | |
10" | 40 | 974 | 840 | 755 | 694 | 645 | 615 | 596 | 584 | 578 |
80 | 1609 | 1388 | 1247 | 1147 | 1066 | 1016 | 986 | 966 | 956 | |
160 | 3147 | 2714 | 2439 | 2242 | 2085 | 1986 | 1927 | 1880 | 1868 |
STAINLESS STEEL CONDENSER TUBE WALL THICKNESS AND SCHEDULE
GAUGE | THICKNESS RANGE(INCHES) | TYPICAL VALUE (INCHES) |
---|---|---|
22 | 0.025 through 0.029 | 0.028 |
20 | 0.031 through 0.035 | 0.035 |
19 | 0.038 through 0.042 | 0.042 |
18 | 0.044 through 0.049 | 0.049 |
17 | 0.053 through 0.058 | 0.058 |
16 | 0.060 through 0.065 | 0.065 |
15 | 0.066 through 0.074 | 0.072 |
14 | 0.075 through 0.085 | 0.083 |
13 | 0.087 through 0.097 | 0.095 |
12 | 0.101 through 0.111 | 0.109 |
11 | 0.112 through 0.122 | 0.12 |
10 | 0.126 through 0.136 | 0.134 |
9 | 0.140 through 0.150 | 0.148 |
8 | 0.157 through 0.167 | 0.165 |
7 | 0.175 through 0.185 | 0.18 |
Nominal Wall Thickness:
NPS Designator | Outside Diameter in. | Schedule 10S in. | Schedule 40S in. | Schedule 80S in. | Schedule 160 in. | Schedule XX in. |
---|---|---|---|---|---|---|
1/4 | 0.540 | 0.065 | 0.088 | 0.119 | ||
3/8 | 0.675 | 0.065 | 0.091 | 0.126 | ||
1/2 | 0.840 | 0.083 | 0.109 | 0.147 | .188 | .294 |
3/4 | 1.050 | 0.083 | 0.113 | 0.154 | .218 | .308 |
1.0 | 1.315 | 0.109 | 0.133 | 0.179 | .250 | .358 |
1 1/4 | 1.660 | 0.109 | 0.140 | 0.191 | .250 | .382 |
1 1/2 | 1.900 | 0.109 | 0.145 | 0.200 | .281 | .400 |
2 | 2.375 | 0.109 | 0.154 | 0.218 | .343 | .436 |
2 1/2 | 2.875 | 0.120 | 0.203 | 0.276 | .375 | .552 |
3 | 3.500 | 0.120 | 0.216 | 0.300 | .438 | .600 |
3 1/2 | 4.000 | 0.120 | 0.226 | 0.318 | .636 | |
4 | 4.500 | 0.120 | 0.237 | 0.337 | .534 | .674 |
5 | 5.563 | 0.134 | 0.258 | 0.375 | .625 | .750 |
6 | 6.625 | 0.134 | 0.280 | 0.432 | .719 | .864 |
8 | 8.625 | 0.148 | 0.322 | 0.500 | .906 | .875 |
10 | 10.750 | 0.165 | 0.365 | 0.500 | 1.125 | |
12 | 12.750 | 0.180 | 0.375 | 0.500 | 1.312 | |
14 | 14.000 | 0.188 | 0.375 | 0.500 | 1.406 | |
16 | 16.000 | 0.188 | 0.375 | 0.500 | 1.594 |
Minimum Wall Thickness on Inspection:
- tn * 0.875 = tm Where: tn = nominal wall thickness, in. [mm], and tm= minimum wall thicknesses, in. [mm]
- The wall thickness is inch-pound units is rounded to three decimal places in accordance with the rounding method of Practice E29. The wall thickness in SI units is rounded to one decimal place in accordance with the rounding method of Practice E29.
Nominal Thickness | Minimum Thickness on Inspection | Nominal Thickness | Minimum Thickness on Inspection | Nominal Thickness | Minimum Thickness on Inspection | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
in. | mm | in | mm | in | mm | in | mm | in | mm | in | mm |
0.068 | 1.7 | 0.060 | 1.5 | 0.294 | 7.5 | 0.257 | 6.5 | 0.750 | 19.0 | 0.658 | 16.6 |
0.068 | 2.2 | 0.077 | 2.0 | 0.300 | 7.6 | 0.262 | 6.7 | 0.812 | 20.6 | 0.710 | 18.0 |
0.091 | 2.3 | 0.080 | 2.0 | 0.307 | 7.8 | 0.269 | 6.8 | 0.843 | 21.4 | 0.736 | 18.7 |
0.095 | 2.4 | 0.083 | 2.1 | 0.308 | 7.8 | 0.270 | 6.9 | 0.854 | 21.7 | 0.756 | 19.2 |
0.113 | 2.9 | 0.099 | 2.5 | 0.312 | 7.9 | 0.273 | 6.9 | 0.875 | 22.2 | 0.766 | 19.5 |
0.119 | 3.0 | 0.104 | 2.6 | 0.318 | 8.1 | 0.278 | 7.1 | 0.906 | 23.0 | 0.783 | 20.1 |
0.125 | 3.2 | 0.109 | 2.8 | 0.322 | 8.2 | 0.282 | 7.2 | 0.937 | 23.8 | 0.820 | 20.8 |
0.126 | 3.2 | 0.110 | 2.8 | 0.330 | 8.4 | 0.289 | 7.3 | 0.968 | 24.6 | 0.847 | 21.5 |
0.133 | 3.4 | 0.116 | 2.9 | 0.337 | 8.6 | 0.295 | 7.5 | 1.000 | 25.4 | 0.875 | 22.2 |
0.140 | 3.6 | 0.122 | 3.1 | 0.343 | 8.7 | 0.300 | 7.6 | 1.031 | 26.2 | 0.902 | 22.9 |
0.145 | 3.7 | 0.127 | 3.2 | 0.344 | 8.7 | 0.301 | 7.6 | 1.062 | 27.0 | 0.929 | 23.6 |
0.147 | 3.7 | 0.129 | 3.3 | 0.358 | 9.1 | 0.313 | 8.0 | 1.083 | 27.8 | 0.956 | 24.3 |
0.154 | 3.9 | 0.135 | 3.4 | 0.365 | 9.3 | 0.319 | 8.1 | 1.125 | 28.6 | 0.984 | 25.0 |
0.156 | 4.0 | 0.136 | 3.5 | 0.375 | 9.5 | 0.328 | 8.3 | 1.156 | 29.4 | 1.012 | 25.7 |
0.179 | 4.5 | 0.157 | 4.0 | 0.382 | 9.7 | 0.334 | 8.5 | 1.218 | 30.9 | 1.066 | 27.1 |
0.187 | 43.7 | 0.164 | 4.2 | 0.400 | 10.2 | 0.350 | 8.9 | 1.250 | 31.8 | 1.094 | 27.8 |
0.188 | 4.8 | 0.164 | 4.2 | 0.406 | 10.3 | 0.355 | 9.0 | 1.281 | 32.5 | 1.121 | 28.5 |
0.191 | 4.9 | 0.167 | 4.2 | 0.432 | 10.4 | 0.378 | 9.6 | 1.312 | 33.3 | 1.148 | 29.2 |
0.200 | 5.1 | 0.175 | 4.4 | 0.436 | 11.1 | 0.382 | 9.7 | 1.343 | 34.1 | 1.175 | 29.8 |
0.203 | 5.2 | 0.178 | 4.5 | 0.437 | 11.1 | 0.382 | 9.7 | 1.375 | 34.9 | 1.203 | 30.6 |
0.216 | 5.5 | 0.189 | 4.8 | 0.438 | 11.1 | 0.383 | 9.7 | 1.406 | 35.7 | 1.230 | 31.2 |
0.218 | 5.5 | 0.191 | 4.9 | 0.500 | 12.7 | 0.438 | 11.1 | 1.436 | 36.5 | 1.258 | 32.0 |
0.219 | 5.6 | 0.192 | 4.9 | 0.531 | 13.5 | 0.465 | 11.8 | 1.500 | 36.1 | 1.312 | 33.3 |
0.226 | 5.7 | 0.196 | 5.0 | 0.552 | 14.0 | 0.483 | 12.3 | 1.531 | 38.9 | 1.340 | 34.0 |
0.237 | 6.0 | 0.207 | 5.2 | 0.562 | 14.3 | 0.492 | 12.5 | 1.562 | 39.7 | 1.367 | 34.7 |
0.250 | 6.4 | 0.219 | 5.6 | 0.593 | 15.1 | 0.519 | 13.2 | 1.593 | 40.5 | 1.394 | 35.4 |
0.258 | 6.6 | 0.226 | 5.7 | 0.600 | 15.2 | 0.525 | 13.3 | 1.750 | 44.5 | 1.531 | 38.9 |
0.276 | 7.0 | 0.242 | 6.1 | 0.625 | 15.9 | 0.547 | 13.9 | 1.781 | 45.2 | 1.558 | 39.6 |
0.277 | 7.0 | 0.242 | 6.1 | 0.656 | 16.6 | 0.573 | 14.6 | 1.812 | 46.0 | 1.586 | 49.3 |
0.279 | 7.1 | 0.244 | 6.2 | 0.674 | 17.1 | 0.590 | 15.0 | 1.968 | 50.0 | 1.772 | 43.7 |
0.280 | 7.1 | 0.245 | 6.2 | 0.687 | 17.4 | 0.601 | 15.3 | 2.062 | 52.4 | 1.804 | 45.8 |
0.281 | 7.1 | 0.246 | 6.2 | 0.719 | 18.3 | 0.629 | 16.0 | 2.343 | 59.5 | 2.050 | 52.1 |
Stainless Steel Condenser Tube CHEMICAL COMPOSITION
The below table shows the chemical composition of the used for Stainless Steel Pipes:
GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
TP304 | S30400 | 0.08 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-11.0 | ||||
TP304L | S30403 | 0.035 | 2 | 0.045 | 0.03 | 1 | 18.0-20.0 | 8.0-13.0 | ||||
TP316 | S3160 | 0.08 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 11.0-14.0 | 2.0-3.0 | |||
TP316L | S31603 | 0.035 | 2 | 0.045 | 0.03 | 1 | 16.0-18.0 | 10.0-14.0 | 2.0-3.0 |
Stainless Steel Condenser Tube MECHANICAL PROPERTIES
Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
º F(º C) | |||||
TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
TP304L | Solution | 1900 (1040) | 70(485) | 25(170) | 35 |
TP316 | Solution | 1900(1040) | 75(515) | 30(205) | 35 |
TP316L | Solution | 1900(1040) | 70(485) | 25(170) | 35 |
AVAILABLE STOCK OF SS SQUARE PIPE
Stainless Steel Seamless Square Pipe Supplier & Manufacturer in India | SS Seamless Square Pipe Supplier |
Seamless SS Square Pipe Supplier & Manufacturer in India | SS Polished Square Pipe Supplier & Manufacturer in India |
Stainless Steel Condenser Tube Suppliers & Manufacturer in India | Stainless Steel Condenser Tube Exporter |
304 Stainless Steel Condenser Tube Suppliers & Manufacturer in India | 316L Stainless Steel Condenser Tube |
SS Square Pipe Hollow Sections Supplier & Manufacturer in India | ASTM A312 TP304 SS Square Pipe Supplier & Manufacturer in India |
SS Bright Annealed Square Pipe | ASTM A312 TP304LStainless Steel Supplier & Manufacturer in India |
Stainless Steel 201 Square Pipes Supplier & Manufacturer in India | Stainless Steel Square 316 Pipe Supplier |
Large Diameter Stainless Steel Condenser Tube | ASTM A312 TP304/304L SS Square Pipe Supplier & Manufacturer in India |
SS Square Pipe Supplier & Manufacturer in India | ASTM A312 TP316 Stainless Steel Supplier & Manufacturer in India |
Hot Rolled Stainless Steel Condenser Tube Suppliers & Manufacturer in India | ASTM A312 TP316L Stainless SS & Manufacturer in India |
1/2″ NB in Thickness Schedule Stainless Steel Condenser Tube | ASTM A312 TP201 Stainless Steel Condenser Tube |
4″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India | ASTM A312 TP316/316L Stainless Steel Condenser Tube Suppliers |
5″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India | Schedule 40 SS Square Pipe Supplier & Manufacturer in India |
6″ NB in Thickness Schedule Stainless Steel Condenser Tube Suppliers & Manufacturer in India | Schedule 80 Stainless Steel Condenser Tube Suppliers & Manufacturer in India |
7″ NB in Thickness Schedule SS Square Pipe Supplier & Manufacturer in India | Schedule 10 SS Square Pipe Supplier |
8″ NB in Thickness Schedule Stainless Steel Condenser Tube Suppliers & Manufacturer in India | Sch 5 Stainless Steel Condenser Tube Suppliers |
14″ NB in Thickness Schedule SS Square Pipe Supplier | Stainless Steel Condenser Tube Weight per meter |
16″ NB in Thickness Schedule Stainless Steel Condenser Tube Supplier & Manufacturer in India | Weight of Stainless Steel Condenser Tube |
18″ NB in Thickness Schedule SS Square Pipe Supplier | Stainless Steel Condenser Tube Price in India |
PACKAGING AND LABELING
To ensure the safe transportation of our products, we take meticulous care in packaging them. In the case of exports, we employ standard wooden cases for packaging. Each pipe is marked with essential information, including Grade, Lot No, Size, Degree, and our trademark. Furthermore, we can provide custom markings on our products upon special requests.
QUALITY ASSURANCE
Our Products maintains stringent quality control measures for all fittings and bars throughout every production stage, from the procurement of raw materials to the dispatch of the final products. Visual inspections ensure compliance with industry-standard codes and regulations such as ASTM, ASME, MSS, DIN, EN, and JIS. Should the need arise, we can arrange for official certified Inspection Agencies to witness material reports, dimensions, and product quality conformity.
TEST CERTIFICATES
Our products come with a Manufacturer Test Certificate per EN 10204 / 3.1B and a Raw Materials Certificate. In addition, they undergo a 100% Radiography Test, and Third Party Inspection Reports can also be provided.
SHIPPING POLICY
The delivery time and dates are determined based on the type and quantity of steel ordered. Our sales team will provide a delivery schedule when you request a quotation. Please note that the delivery schedule may occasionally be subject to change, so we recommend checking with our sales department when placing your orders. Orders are typically dispatched within 2-3 business days and may take 5-10 business days to reach their destination. If Forgings are out of stock, orders may require 2-4 weeks for shipping. Our Products will promptly notify the buyer if such a situation occurs.
Stainless Steel Square Rod
Stainless Steel Rods
Stainless Steel Rods
Stainless Steel Condenser Tubes
Industry We Serve
Cities We Deliver To
Istanbul, Coimbatore, Jamshedpur, Haryana, Dammam, Ankara, Hyderabad, Sharjah, Kuala Lumpur, Mumbai, Surat, Ranchi, Pune, Bangkok, Busan, Kuwait City, Singapore, Indore, Vadodara, Madrid, Al Jubail, Dallas, Faridabad, Secunderabad, Toronto, Petaling Jaya, Brisbane, Jaipur, Thiruvananthapuram, Colombo, Atyrau, Algiers, Los Angeles, Houston, Visakhapatnam, Tehran, Thane, Doha, Hanoi, Edmonton, Karachi, Cairo, Gurgaon, Jakarta, Ahmedabad, Geoje-si, Ho Chi Minh City, Chiyoda, Kanpur, Riyadh, Rajkot, Bhopal, La Victoria, Milan, Muscat, Chennai, Bogota, Gimhae-si, New York, Ernakulam, Granada, Santiago, Ludhiana, Dubai, Kolkata, Caracas, Howrah, Jeddah, Lahore, Courbevoie, Perth, Pimpri-Chinchwad, Aberdeen, Manama, Nagpur, Ahvaz, Montreal, Seoul, Bengaluru, Sydney, Al Khobar, Lagos, Calgary, Vung Tau, New Delhi, Nashik, Ulsan, Noida, Mexico City, Hong Kong, Rio de Janeiro, Abu Dhabi, Melbourne, Chandigarh, Baroda, Port-of-Spain, London, Navi Mumbai, Moscow.
Countries We Deliver To
Peru, Kazakhstan, Bolivia, Bhutan, Poland, Nigeria, China, Bangladesh, Norway, Estonia, Costa Rica, Taiwan, Sri Lanka, Qatar, Iran, Canada, Zimbabwe, Malaysia, Morocco, Denmark, Poland, Thailand, Egypt, Iran, Gabon, Lithuania, Netherlands, Belgium, Bulgaria, Bahrain, Mexico, Japan, Turkey, Portugal, Venezuela, South Korea, Ecuador, United Arab Emirates, Namibia, Hong Kong, Ghana, Slovakia, Germany, Austria, Vietnam, Gambia, Mongolia, Ireland, Italy, Romania, United States, Kuwait, Spain, Indonesia, Greece, France, Chile, Czech Republic, Nigeria, Israel, Tunisia, Libya, Ukraine, Nepal, Jordan, Brazil, Serbia, Afghanistan, South Africa, Lebanon, Chile, Angola, Philippines, Hungary, Mexico, Yemen, United Kingdom, Sweden, Tibet, Macau, Kenya, Puerto Rico, New Zealand, Singapore, Algeria, Azerbaijan, Oman, Pakistan, India, Saudi Arabia, Russia, Iraq, Australia, Finland, Colombia, Argentina, Croatia, Belarus, Switzerland, Trinidad & Tobago.
Other Available Products of Aluminium Rods
» Stainless Steel Round Pipe
» Stainless Steel Rectangular Pipe
» Stainless Steel Hydraulic Pipe
» Stainless Steel Oval Pipe
» Stainless Steel 304 Pipe
» Stainless Steel 304L Pipe
» Stainless Steel ERW Pipe
» Stainless Steel 316 Pipe
» Stainless Steel 316L Pipe
» Stainless Steel Hollow Pipe
» Stainless Steel Perforated Pipe
People also search for Stainless Steel Products
Stainless Steel Tube price per kg, Stainless Steel Condenser Tube manufacturers in india, Stainless Steel Rectangular Pipe, Stainless Steel Perforated Pipe.
